Charger
|
Specialized 4amp charger
|
|
Motor
|
Specialized 3.1 Motor, 101Nm torque, 666Nm power
|
|
UI/Remote
|
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App
|
|
Battery
|
840Wh battery
|
|
Seat Binder
|
Alloy, 38.6mm
|
|

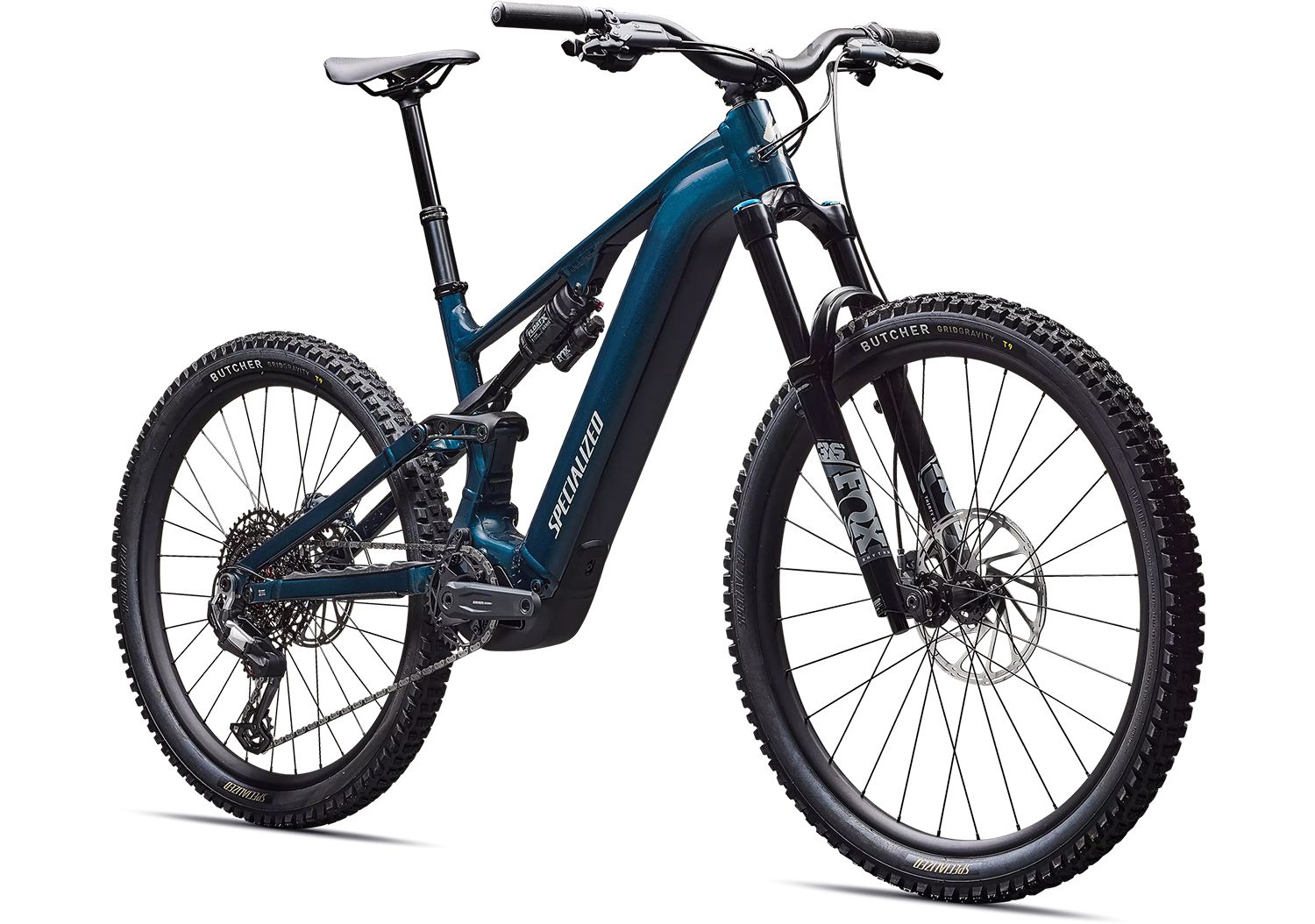

Frame
|
All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
|
|
Fork
|
FOX 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle
|
|

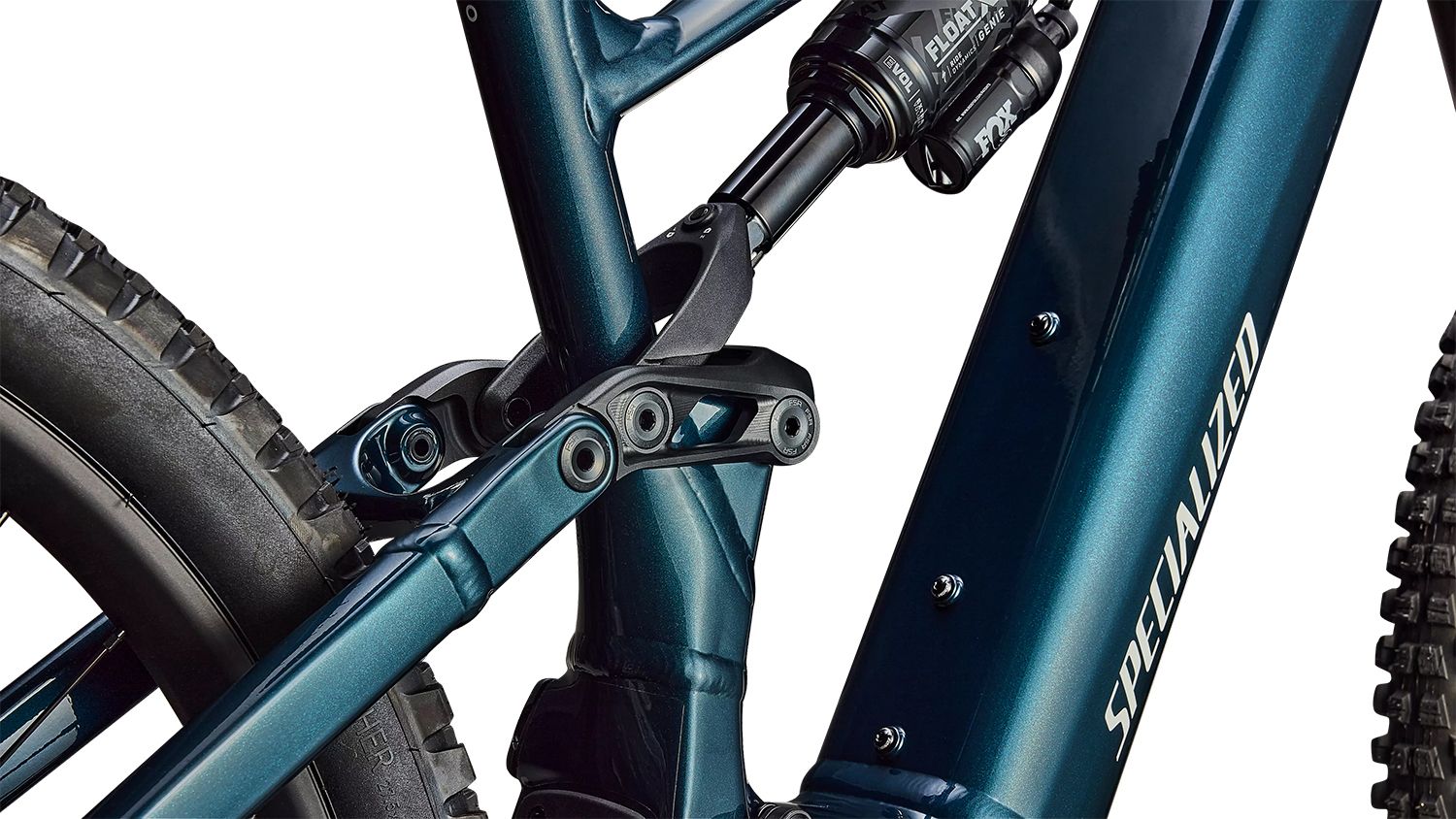

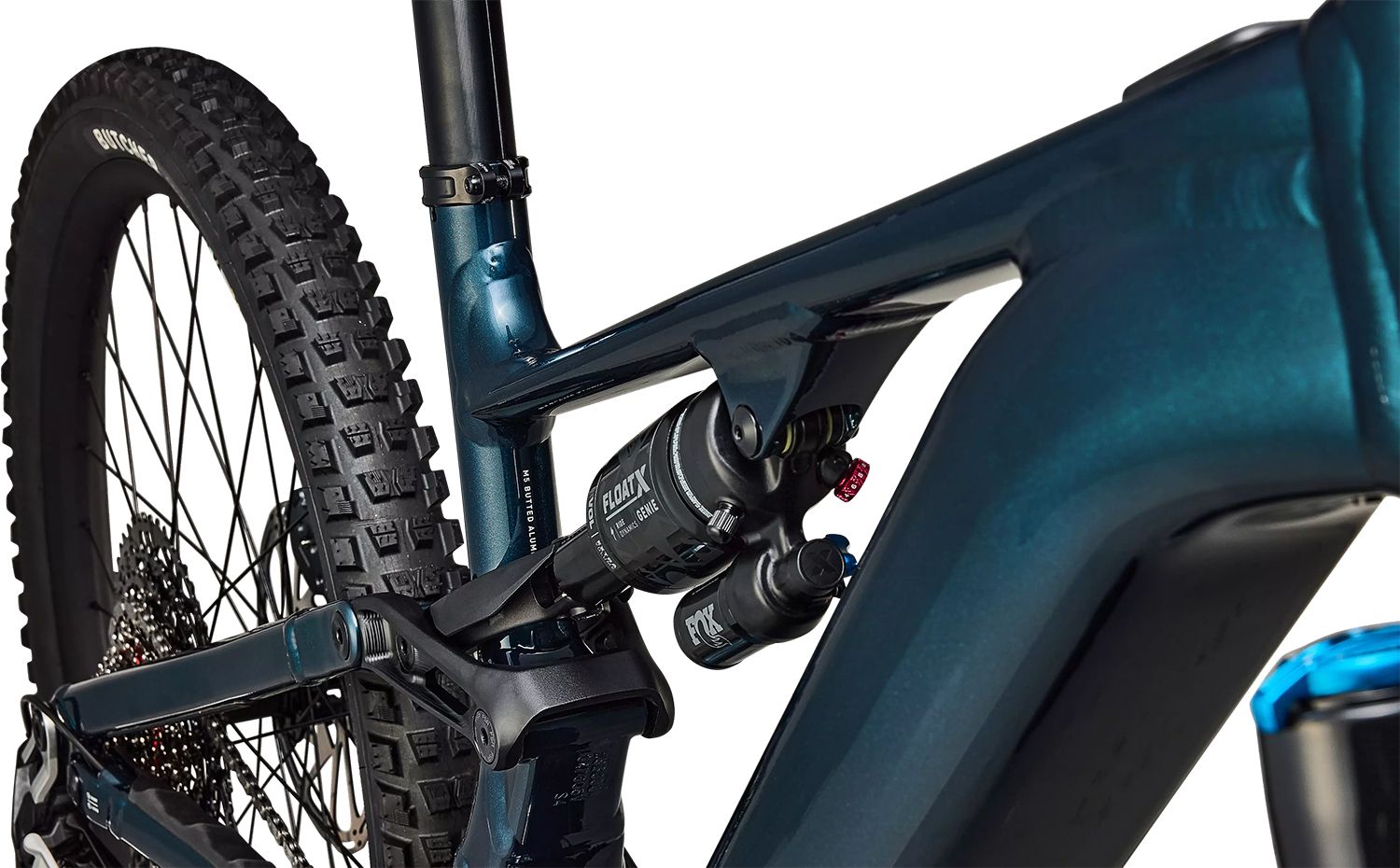

Rear Shock
|
FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
|
|
Front Brake
|
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
|
|
Rear Brake
|
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
|
|
Chainrings
|
SRAM 34t T-Type chainring, 104 BCD, steel
|
|

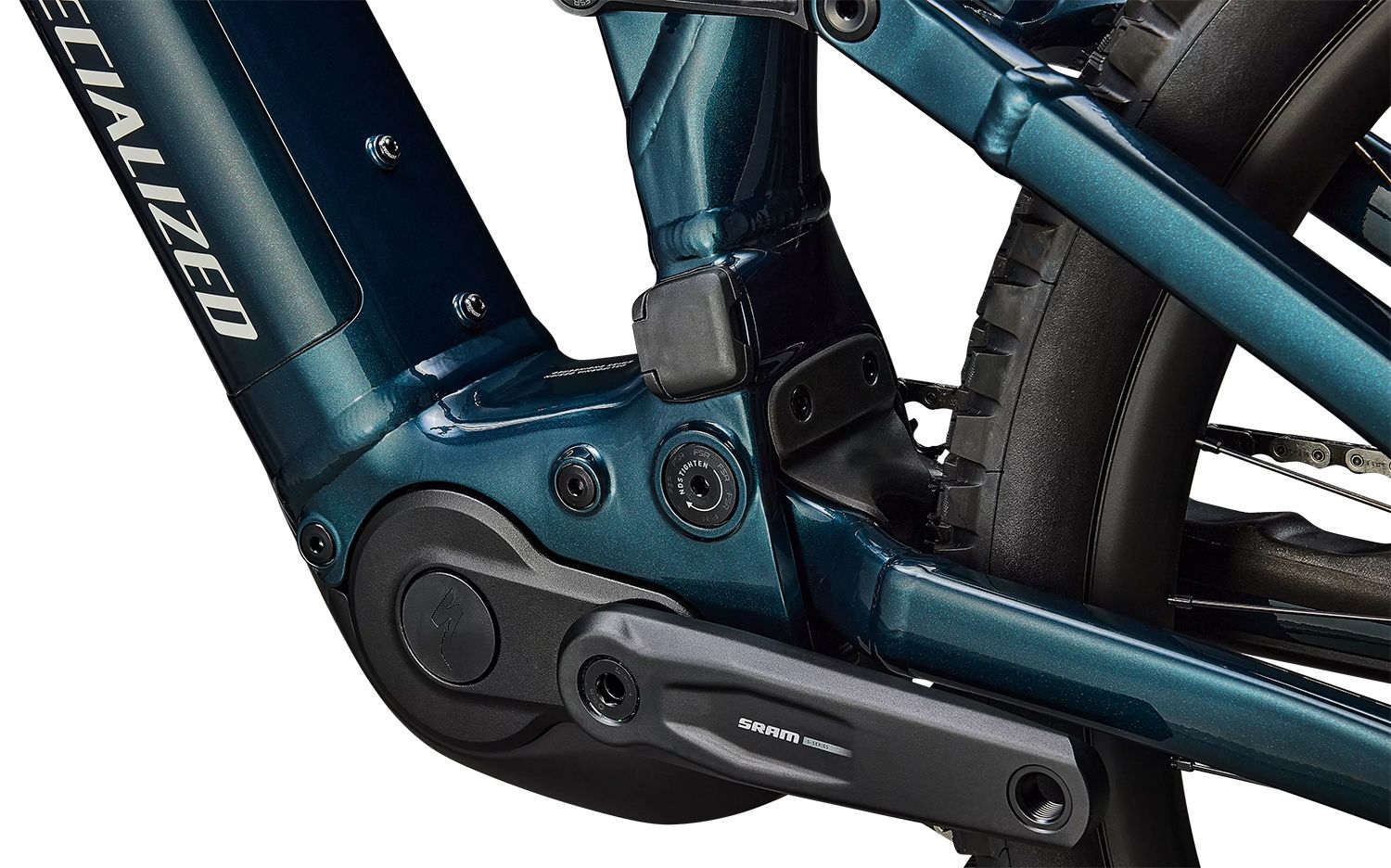

Crankset
|
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
|
|
Chain
|
SRAM GX Eagle T-Type Flattop Chain, 12-speed
|
|
Shift Levers
|
SRAM 90 trigger, 12-speed, single click
|
|
Rear Derailleur
|
SRAM Eagle 90 T-Type
|
|
Cassette
|
SRAM XS-1275, 12-speed, 10-52t
|
|
Rear Hub
|
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
|
|
Front Hub
|
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
|
|
Front Tire
|
Butcher, GRID GRAVITY Casing, GRIPTON® T9 compound, TLR, 29x2.4"
|
|
Spokes
|
DT Swiss Industry
|
|
Rear Tire
|
Butcher, GRID GRAVITY Casing, Gripton T9 compound 27.5X2.4
|
|
Rims
|
Specialized, hookless alloy, 30mm inner width, tubeless ready
|
|
Inner Tubes
|
Standard Presta Valve
|
|
Stem
|
Alloy Trail Stem 35mm bar bore
|
|
Saddle
|
Bridge Comp, Hollow Cr-mo rails 155/143
|
|

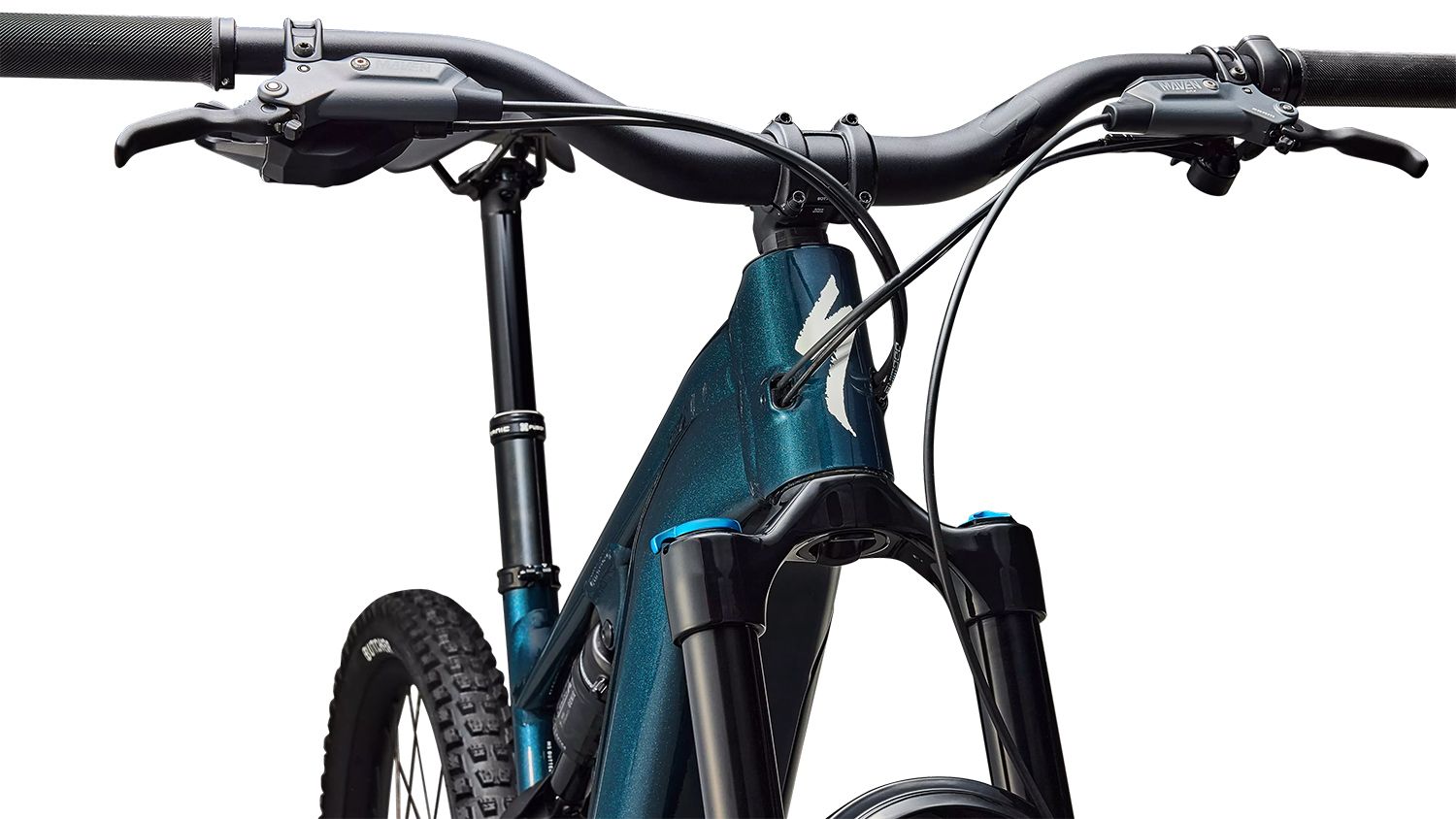

Handlebars
|
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
|
|
Grips
|
Specialized Trail Grips
|
|
SeatPost
|
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm
|
|
SWAT
|
SWAT Internal downtube storage
|
|
Weight
|
Size S4: 25.70 kg (56 lb, 11.2 oz)
|
