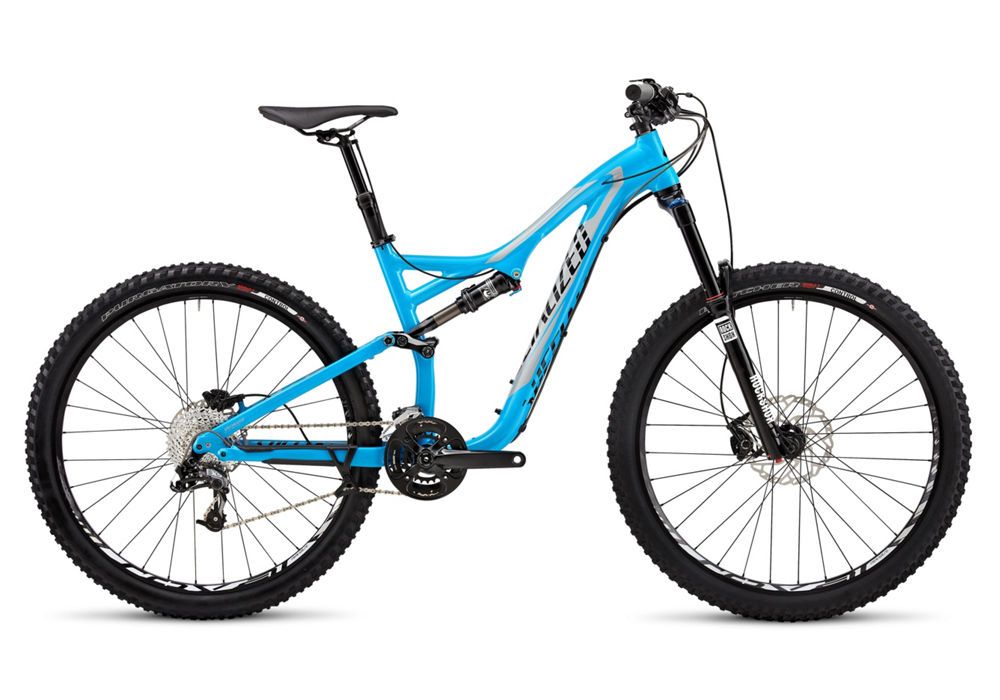

The M5 aluminium Stumpjumper FSR Comp EVO 650b is purpose-built for the aggressive trail rider. It separates itself from the "regular" Stumpjumpers with a slacker head angle and 150mm of front and rear travel.
The Comp EVO features a custom Fox Float CTD Evolution shock with AUTOSAG RockShox Revelation RC3 fork and a 2.3" Specialized Butcher Control front tyre.
> Hot asymmetrical graphic on the M5 manipulated alloy frame with 150mm of rear wheel travel EVO geometry tapered headtube 142mm dropouts PF30 BB and sealed cartridge bearing pivots pushes the boundaries of trail riding
> FOX Float CTD Evolution shock with ground-breaking proprietary Specialized AUTOSAG features 3 compression settings: Climb Trail and Descend and rebound adjust
> RockShox Revelation RC3 150mm fork has a tapered steerer 15mm thru-axle 3-position damper: open medium and firm with rebound adjust for a lightweight trail bike slider capable
of ripping technical descents
> Roval rims mated to Specialized Hi Lo hubs oversized endcaps a 142+ rear hub spacing and 12mm thru-axle increase wheel stiffness for more confident riding
> Custom SRAM S-1250 10-speed All-Mountain double-ring shifts fast while the PF30 spindle makes for an efficient and stiff crankset
> 750mm-wide Specialized All-Mountain low-rise handlebar is built to control rough trail riding
> Shimano Deore disc brakes provide great braking power and modulation while the Specialized Butcher and Purgatory tyres keep the traction while rolling fast
> SRAM X9 Type2 10-speed mid-cage rear derailleur and 11-36 cassette for smooth and reliable shifts
> Specialized Command Post BlackLite uses a remote lever to adjust saddle height on-the-fly to maximise climbing and descending performance
Technical Specifications
FRAME M5 hydroformed tubing EVO geometry tapered headtube PF30 BB ISCG ’05 Command Post BlackLite routing 142mm dropouts sealed cartridge bearing pivots replaceable derailleur hanger 150mm travel
REAR SHOCK Custom FOX Float CTD Evolution w/ AUTOSAG Climb Trail Descend settings and rebound adj. 195x51mm
FORK Custom RockShox Revelation RC3 650b tapered alloy steerer 3P damper w/ 3-position compression and rebound adj. 15mm thru-axle 150mm travel
HEADSET 1-1/8 and 1-1/2" threadless Campy style upper with 1-1/2" lower cartridge bearings
STEM Specialized XC 3D forged alloy 4-bolt 6-degree rise 31.8mm clamp
HANDLEBARS Specialized All-Mountain low-rise 7050 alloy 750mm wide 8-degree backsweep 6-degree upsweep 31.8mm
GRIPS Specialized Sip Grip light lock-on half-waffle S/M: regular thickness Others: XL
FRONT BRAKE Shimano Deore M-615 hydraulic disc Ice Tech pads S/M: 180mm rotor Others: 200mm
REAR BRAKE Shimano Deore M-615 hydraulic disc Ice Tech pads S/M: 160mm rotor Others: 180mm
BRAKE LEVERS Shimano Deore M-615 hydraulic disc
FRONT DERAILLEUR SRAM X7 10-speed S3 direct mount for DMD bottom pull
REAR DERAILLEUR SRAM X9 Type 2 10-speed mid cage
SHIFT LEVERS SRAM X7 10-speed w/ MatchMaker clamp
CASSETTE SRAM PG-1030 10-speed 11-36
CHAIN SRAM PC 1051 10-speed w/ PowerLink nickel finish
CRANKSET Custom SRAM S-1250 7050 alloy arms 10-speed AM double PF30 spindle S: 170mm Others: 175mm
CHAINRINGS 36/24 w/ alloy guard
BOTTOM BRACKET SRAM PF30 OS press-in bearings sealed cartridge
PEDALS Resin test ride w/ toe clips CEN std.
RIMS Roval 650b alloy disc 24mm wide 32h
FRONT HUB Specialized Hi Lo disc sealed cartridge bearings 15mm thru-axle 32h
REAR HUB Specialized Hi Lo disc 4 sealed cartridge bearings 12mm thru-axle 32h
SPOKES DT Swiss Industry stainless
FRONT TYRE Specialized Butcher Control 60TPI 2Bliss Ready folding bead 650bx2.3"
REAR TYRE Specialized Purgatory Control 60 TPI 2Bliss Ready folding bead 650bx2.3"
INNER TUBES Ultralight presta valve
SADDLE Body Geometry Henge Comp hollow Cr-Mo rails 143mm
SEATPOST Command Post BlackLite alien head design single bolt head w/ remote adjust lever 30.9mm S: 100mm travel Others: 125mm
SEAT BINDER Command Post single bolt 34.9mm
