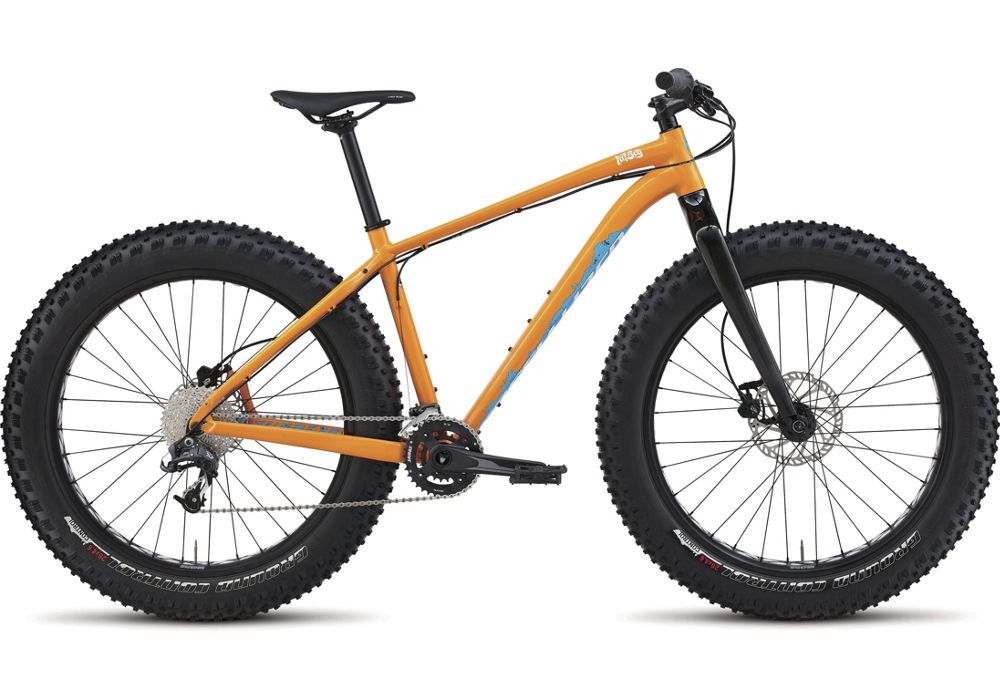

All the fun of a fat bike with the performance of a Specialized. The Fatboy combines a lightweight frame and fork with 4.6" Ground Control tyres to create a geometry similar to Specialized 29er geometry for nimble handling in the most extreme conditions.
Fully butted M4 Premium Aluminium frame w/ up to 5-inch tyre clearance is lightweight and stiff
Specialized FACT carbon fork w/ 5-inch tyre clearance for stiff handling
Fat 26" disc alloy single wall rims are designed to handle even the worst terrain
Specialized Ground Control Fat 26x4.6" tyres roll over anything
Custom 2x10 forged alloy crankarm w/ 100mm spindle for put the power down
Tektro Gemini hydraulic disc brakes for reliable stopping power
SRAM X7 10-speed medium carbon cage derailleur for crisp and precise shifting
Technical Specifications
FRAME Specialized M4 Premium Aluminium fully butted w/ smooth welds tapered headtube post-mount disc dropouts 170mm rear hub spacing replaceable alloy derailleur hanger
FORK Specialized FACT carbon full monocoque tapered steerer
HEADSET 1-1/8" upper 1-1/2" lower Campy style integrated sealed cartridge bearings
STEM Specialized 3D forged alloy 4-bolt 6-degree rise anti-corrosion hardware
HANDLEBARS Specialized low rise double butted 6061 alloy 9-degree backsweep 5-degree upsweep 15mm rise 31.8mm
GRIPS SRAM S-Series Grip Shift 92mm
FRONT BRAKE Tektro Gemini hydraulic disc resin pads
REAR BRAKE Tektro Gemini hydraulic disc resin pads
BRAKE LEVERS Tektro Gemini hydraulic disc
FRONT DERAILLEUR SRAM X7 2x10 low direct mount
REAR DERAILLEUR SRAM X7 Type 2 10-speed medium cage
SHIFT LEVERS SRAM S-Series Grip Shift 10-speed
CASSETTE Sunrace 10-speed 11-36
CHAIN KMC X10L 10-speed reusable Missing Link
CRANKSET Custom 2x10 alloy 100mm CNC spindle w/ BB
BOTTOM BRACKET Samox PF30
PEDALS Nylon platform w/ moulded pins loose ball 9/16"
RIMS Fat 26" disc alloy single wall pin joint 32h w/ Fatboy logo
FRONT HUB Specialized MTB Hi Lo disc alloy sealed cartridge bearings QR 32h
SPOKES Stainless 14g
FRONT TYRE Specialized Ground Control Fat 120TPI folding bead 26x4.6"
REAR TYRE Specialized Ground Control Fat 120TPI folding bead 26x4.6"
INNER TUBES Standard presta valve
SADDLE Body Geometry mountain steel rails 143mm
SEATPOST Alloy 2-bolt 12.5mm offset 30.9mm anti-corrosion hardware
SEAT BINDER Alloy 34.9mm
