| Wheel Size / ETRTO |
Front: 29"/622 mm, Rear: 29"/622 mm 27.5"/584 mm |
| Tubeless Compatibility |
Yes |
| Insert Compatibility |
Yes |
| Brake Compatibility |
Disc (6-Bolt) |
| Rim Construction |
Carbon Clincher Hookless |
| Valve Stem Length |
Roval Thread Bead 37mm, Standard Presta greater than 37mm |
| Hole Count |
Front: 28H, Rear: 32H |
| Rear Rim |
Traverse HD Asymmetric Carbon 29" (WC037-3), 27.5" (WC041-3) |
| Rear Rim Dimensions |
Depth: 24mm, External Width: 40mm, Internal Width: 30mm, Bead Hook Width: 5mm |
| Front Rim |
Traverse HD Asymmetric Carbon 29" (WC037-1) |
| Front Rim Dimensions |
Depth: 24mm, External Width: 40mm, Internal Width: 30mm, Bead Hook Width: 5mm |
| Rear Hub |
DT Swiss 350 J-Bend, 6-Bolt, 12x148mm |
| Rear Freehub Body |
DT Swiss Ratched DEG (72T): Sram XD |
| Rear Hub Bearing |
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm) |

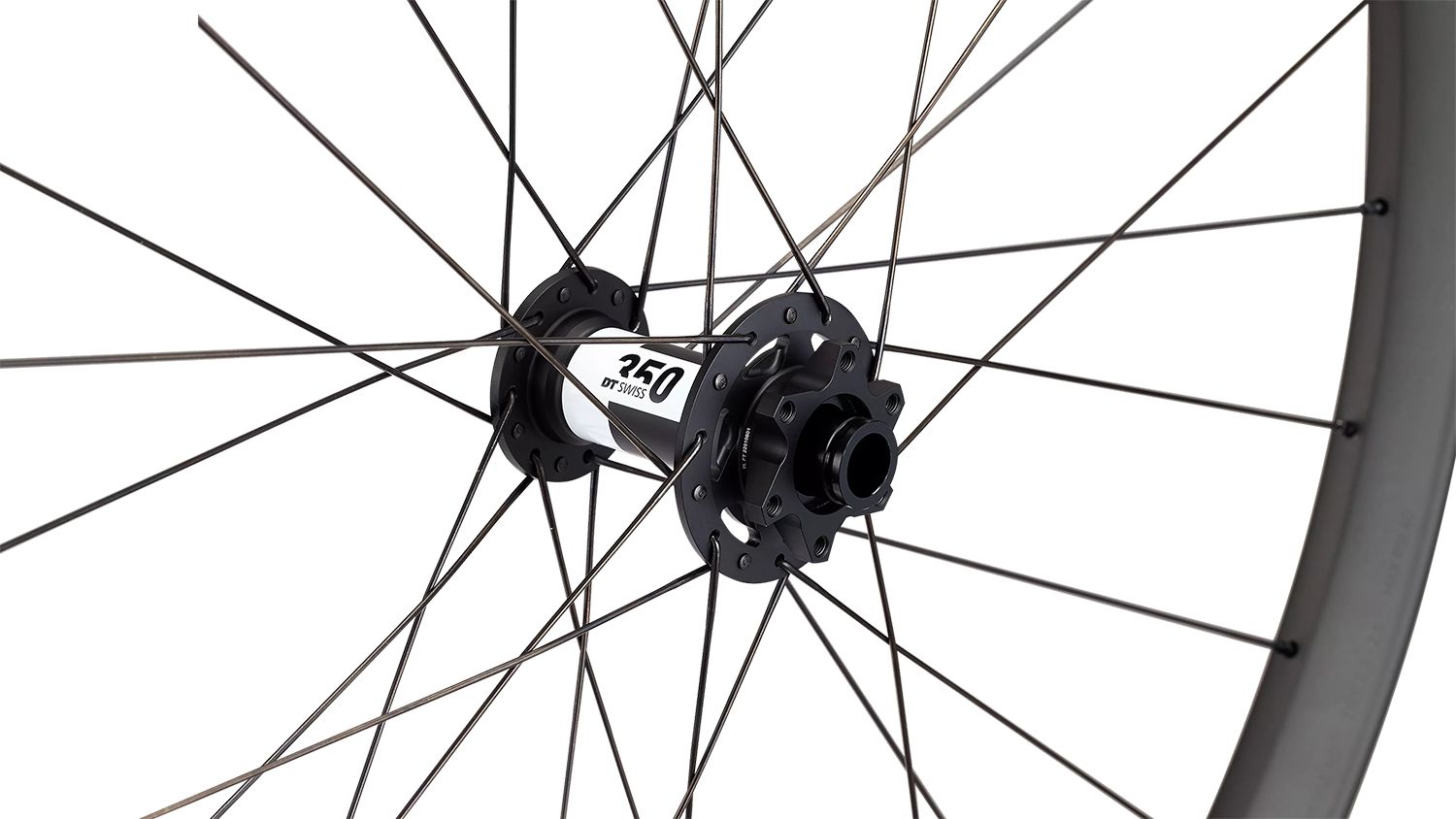

| Front Hub |
DT Swiss 350 J-Bend, 6-Bolt, 15x110mm, 19mm OD End Caps Installed |
| Front Hub Bearing |
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm) |
| Nipples |
DT Swiss Pro Lock, Hexagonal, Alloy |
| Rear Spokes |
DT Swiss Competition Race |
| Rear Lacing Pattern |
Three-cross / Three-cross (1:1) Tucked |
| Front Spokes |
DT Swiss Competition Race |
| Front Lacing Pattern |
Two-cross / Two-cross (1:1) Tucked |
| Tubeless Tape Width |
32mm |
| Tire Type |
Tubeless, Tube Type Clincher |
| Design Tire |
Butcher Grid Trail T9 TLR Trail Tire 29 x 2.4 |
| Approved Tire Widths |
2.3” - 2.6” |
| Max Pressure |
Tubeless 40 psi, Tubes 40 psi |
| Wheelset Weight |
1,884g (with valves and tape) - 29" / 1,778g (with tape and valves) - 29/27.5" |
| Rear Weight |
1,060g (with valves and tape) - 29" / 954g (with tape and valves) - 27.5" |
| Front Weight |
824g (with valves and tape) |
| Weight Limit |
275 lbs. / 125 kg. |
| E-bike Approved |
Yes |
| Extras |
4 Extra Spokes and Nipples, 31mm OD End Caps |
