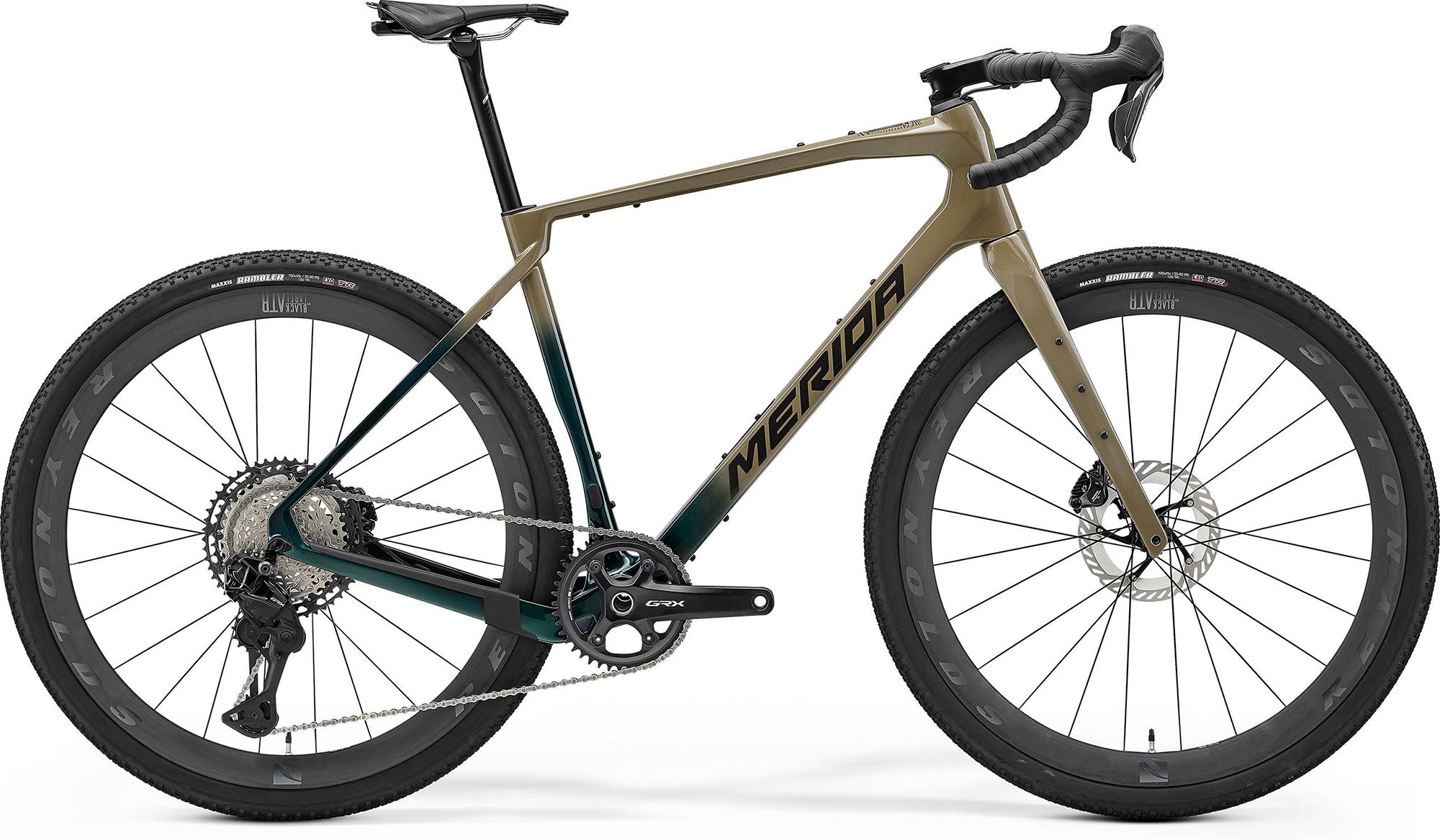

Range topping carbon adventure gravel bike with Shimano GRX 1 x 12 electronic shifting, Reynolds Black Label carbon wheelset and branded finishing kit.
Over time gravel has evolved, splitting in to racing and adventure. Silex remains all about the road less travelled, the spirit of adventure and camaraderie. The new Mission platform takes on the role of racing. Thats not to say the Silex was a slouch off-road, a week before its launch, Matej Mohoric won the 2023 Gravel World Championships! The Silex concept was a ground up design that rather than taking a road or cyclocross bike and re-jigging the recipe, started with modern MTB inspired geometry; long top and head tubes and a short stem, offering nimble, confidence-inspiring off road handling. This 2nd gen frame runs a revised fork design meaning you can swap to a suspension fork without affecting the geometry. All frames have five sets of bottle bosses, the aluminium frame has rack mounting points offering multiple luggage carrying options for any adventure and has the ability to run internal routed dropper posts and even dynamo systems. All Silex (except the 200) feature powerful hydraulic disc brakes and 180mm rotors. Calipers are mounted on the chainstay for better dissipation of braking forces using the flat-mount standard for a neat, flush fit. On carbon models calipers sit on CNCd aluminium Disc Cooler fins reducing operating temperatures by up to 35%; particularly important when running fully loaded.
Highlights:
FRAME |
CF2 carbon II, gravel geometry for stable but nimble handling. Tapered head tube Inboard disc mounts. Threaded BB, 142 x12mm axle standard, disc cooler technology, Max tyre size 700 x 45c (42c with mudguards) |
FORK |
Silex Silex II CF2; Tapered; material: carbon; 700x47C max. tyre size |
GEARS |
12 |
SHIFTERS |
Front: Shimano GRX825, Rear: Shimano GRX825 Di2 |
REAR DERAILLEUR |
Shimano GRX827 Di2 |
Bottom Bracket |
Shimano SM-BBR60 |
CHAIN |
Shimano M6100-12 |
CHAINSET |
Shimano GRX820-1; 42 tooth chainset; Crank length: (XXS-M) - 170mm, (L-XL) - 172.5mm |
CASSETTE |
Shimano CS-M8200; 10-51 teeth; 12 speed |
BRAKE LEVER |
Shimano GRX825 Di2 |
FRONT BRAKE |
Shimano GRX825; Hydraulic disc with Shimano CL800; 180mm |
REAR BRAKE |
Shimano GRX825; Hydraulic disc with Shimano CL800; 180mm |
GRIP |
Merida Road Expert |
HANDLEBAR |
Easton EC90 AX; material: carbon; (XXS-S) - 400mm wide, M - 420mm wide, (L-XL) - 440mm wide |
STEM |
Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: 80mm all sizes |
HEADSET |
Acros ICR Merida External neck w/diecast splitring |
PEDAL |
Not included |
SADDLE |
Prologo Scratch M5 AGX; V-mount adapter; incl. Merida minitool |
SEAT POST |
Metron RS Seatpost; 27.2mm diameter; in-line; material: carbon |
WHEEL SIZE |
700c |
RIMS |
Reynolds BL ATR Expert CL; 100x12mm; 142x12mm; 25mm inner rim width; 42mm rim depth; Centerlock; material: carbon |
SPOKES |
Part of wheelset - Reynolds BL ATR Expert CL |
FRONT HUB |
Part of wheelset - Reynolds BL ATR Expert CL |
REAR HUB |
Part of wheelest - Reynolds BL ATR Expert CL |
FRONT TYRE |
Maxxis Rambler; 700x45C; kevlar bead; TR; EXO |
REAR TYRE |
Maxxis Rambler; 700x45C; kevlar bead; TR; EXO |
COLOUR |
Halo Green Fade (Silver Green) |
OTHER |
Fidlock Integrated Base & Merida Bottle - Garmin Carrier + Garmin insert*2 + GoPro/Light Mount - Disc cooler F/R and Merida Multitool with saddlebox |
