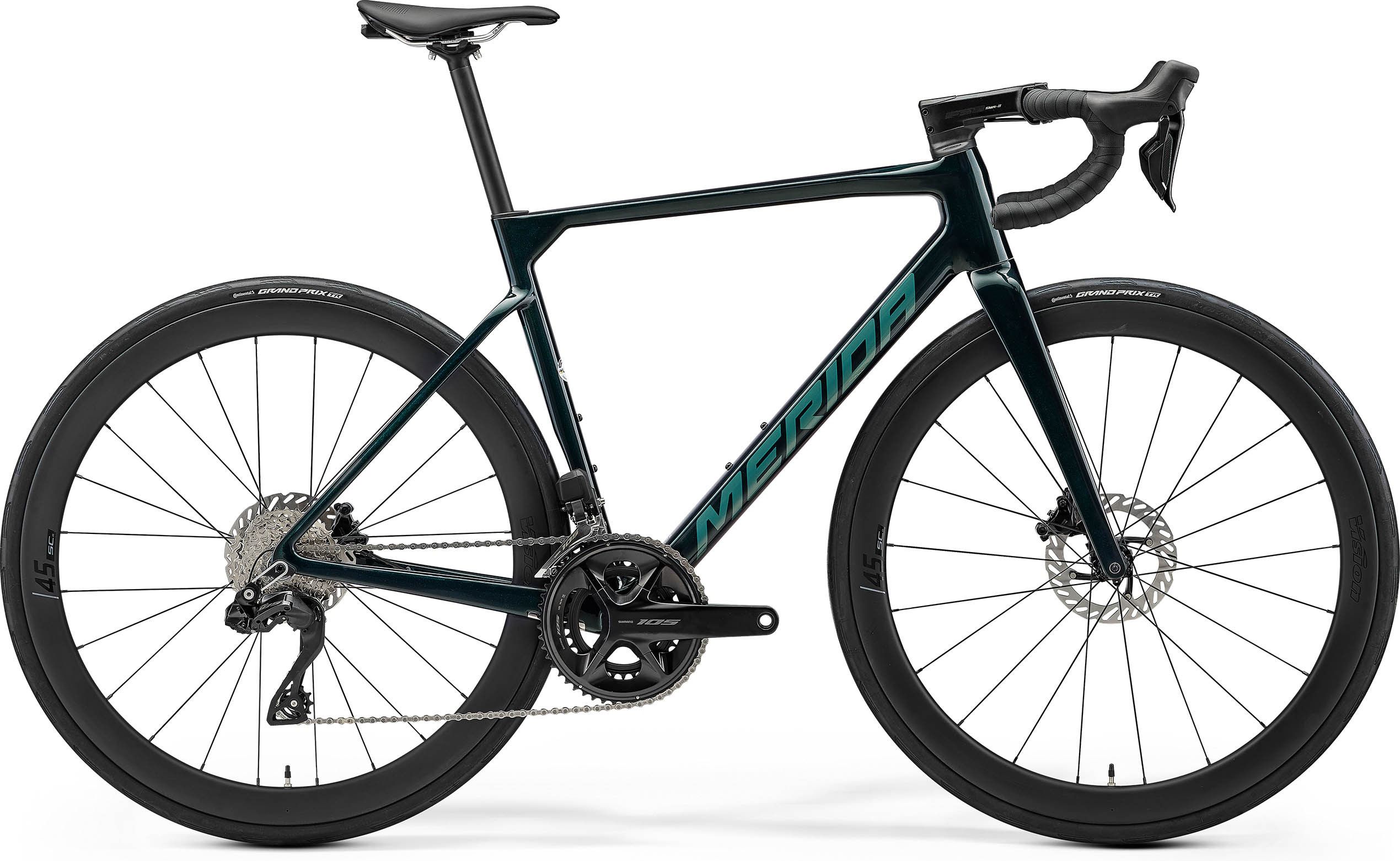

Carbon CF3 framed road bike with a full 24 speed Shimano 105 groupset with Di2 electronic shifting, Vision SC45 carbon wheelset, Shimano 105 hydraulic disc brakes and Continental Grand Prix TR 28c tyres.
The Scultura is the go to all-rounder, now in its fifth iteration with improved aerodynamics thanks to shared learnings from the award-winning Reacto aero bike. Yet, it remains true to its lightweight, agility and rider comfort focus demonstrating outstanding compliance to keep the body fresh for the final sprint or ascent. When it comes to final efforts, the geometry is World Tour, winning stages of the Vuelta and Tour even before it was officially launched helping prove its whippet-like acceleration and class-leading climbing pedigree.
Highlights:
Frame |
CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c |
Fork |
Scultura CF3 Disc; material: carbon; 700x30C max. tyre size |
Gears | 24 |
Shifters |
Front: Shimano 105 Disc Di2, Rear: Shimano 105 Disc Di2 |
Front Derailleur | Shimano 105 Di2 |
Rear Derailleur | Shimano 105 Di2 |
Bottom Bracket | Shimano SM-BB71-41B; Pressfit 86.5 |
Chain | Shimano M6100-12 |
Chainset | Shimano 105 R7100; 50-34 tooth chainset; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
Cassette | Shimano 105 R7101; 11-34 teeth; 12 speed |
Brake Lever | Shimano 105 |
Front Brake | Shimano 105; Hydraulic disc with Shimano CL700; 160mm |
Rear Brake | Shimano 105; Hydraulic disc with Shimano CL700; 160mm |
Grip |
Merida Road Expert |
Handlebar | Merida Expert SLII; material: aluminium; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
Stem | FSA SMR-II; material: aluminium; -10 ; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm |
Headset | FSA ACR |
Pedal | Not Included |
Saddle | Merida Expert SL; 6% recycled and 23% nature material; V-mount; incl. Merida minitool |
Seatpost | Merida Expert SL; 27.2mm diameter; in-line; material: carbon |
Wheel Size | 700C |
Rims | Vision SC 45 Disc; 100x12mm; 142x12mm; 23mm inner rim width; 45mm rim depth; Centerlock; material: carbon; Tubeless tape ready |
Spokes | Part of wheelset - Vision SC 45 Disc |
Front Hub | Part of wheelset - Vision SC 45 Disc |
Rear Hub | Part of wheelest - Vision SC 45 Disc |
Front Tyre | Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready |
Rear Tyre | Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready |
Other | Garmin Carrier + Garmin insert*2 + GoPro/Light Mount, Disc cooler F/R and Merida Multitool with saddlebox |
