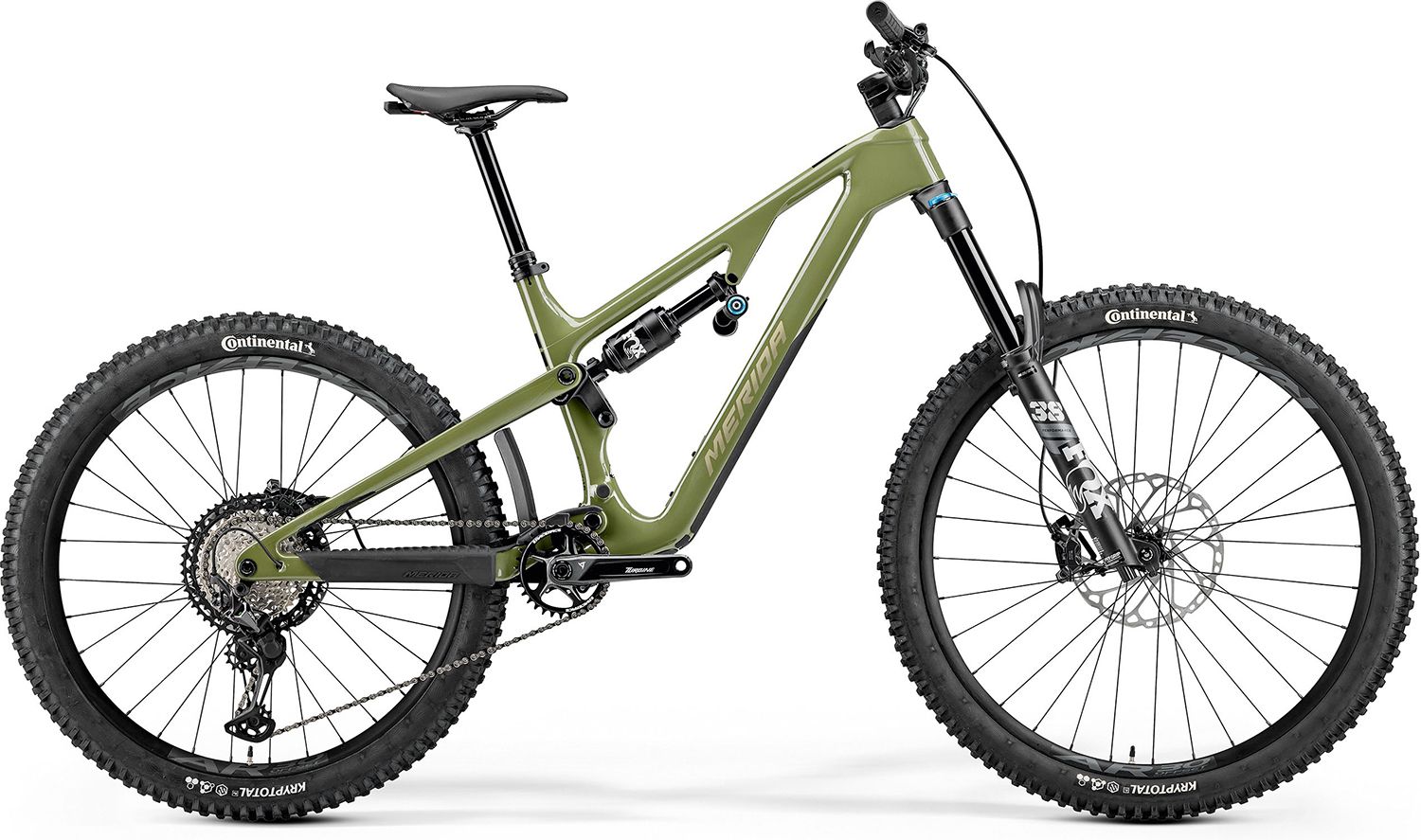

Top-end carbon frame, test and award winning suspension and one of the most progressive geometries on the market. What more could you ask for in your next enduro rig?
Taking the tested and award-winning full carbon frame that won Bikeradars Enduro Bike of the Year 2023 and pairing it with Foxs benchmark 38 fork and X2 shock brings top level performance to any enduro track. Add to this the ability to run 29 or mixed 29/27.5 wheels, our proven FAST kinematics plus the perfect mix of Components from Shimano and Race Face and you have a race winning combination.
Highlights:
Frame |
CF4 carbon front and rear, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, storage trunk, flip chip for mullet or 29er. max tyre size - 2.5 |
Shock |
Fox Float X2 Performance; platform |
Fork |
Fox 38 Performance; Air; 170 mm travel; Tapered; 44mm fork offset; 29x2.6 max. tyre size |
Gears |
12 |
Shifters |
Front: Shimano SL-MT500-IL, Rear: Shimano XT M8100; Multi Release |
Rear Derailleur | Shimano XT M8100; SGS |
Bottom Bracket | Race Face BB BSA; 30mm |
Chain |
KMC X12 |
Chainset | Race Face Turbine; 32 tooth chainset; Crank length: 165mm |
Cassette | Shimano XT M8100; 10-51 teeth; 12 speed |
Front Brake | Shimano XT M8220; 4 piston with Shimano RT64; 220mm |
Rear Brake | Shimano XT M8220; 4 piston with Shimano RT64; 203mm |
Grip |
Merida Expert TR; recycled material |
Handlebar | Merida Expert TR II; material: aluminium; 780mm wide; 30mm rise |
Stem | Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
Headset | Acros ICR Merida integrated neck; Upper and lower IPS sealing |
Pedal | N/A |
Saddle |
Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool |
Seatpost | Merida Expert TR III; 34.9mm diameter; in-line; 25mm travel adjustability; Xshort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm seat post travel |
Wheel Size | 29 / 27.5 |
Rims | Race Face AR30; 30mm inner rim width; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); rear 27.5 up to Size M / L & XL rear 29 |
Spokes | Double Butted Black stainless w/black nipples |
Front Hub | Shimano TC500-B; 110x15mm; 32 spoke; Centerlock |
Rear Hub | Shimano TC600-MS-B; 148x12mm; 32 Spoke; Centerlock |
Front Tyre | Continental Kryptotal-F; 29x2.4; kevlar bead; TR; Enduro casing; Super soft compund |
Rear Tyre | Continental Kryptotal-R; (XShort-Mid) - 27.5x2.4, (Long-XLong) - 29x2.4; kevlar bead; Enduro casing, soft compound |
Colour | Anaconda Green (Cream) |
Other | Fidlock Integrated Base & Merida Bottle, Merida Multitool with saddlebox and Velcromm travelap & Tube Base Mount CF |
