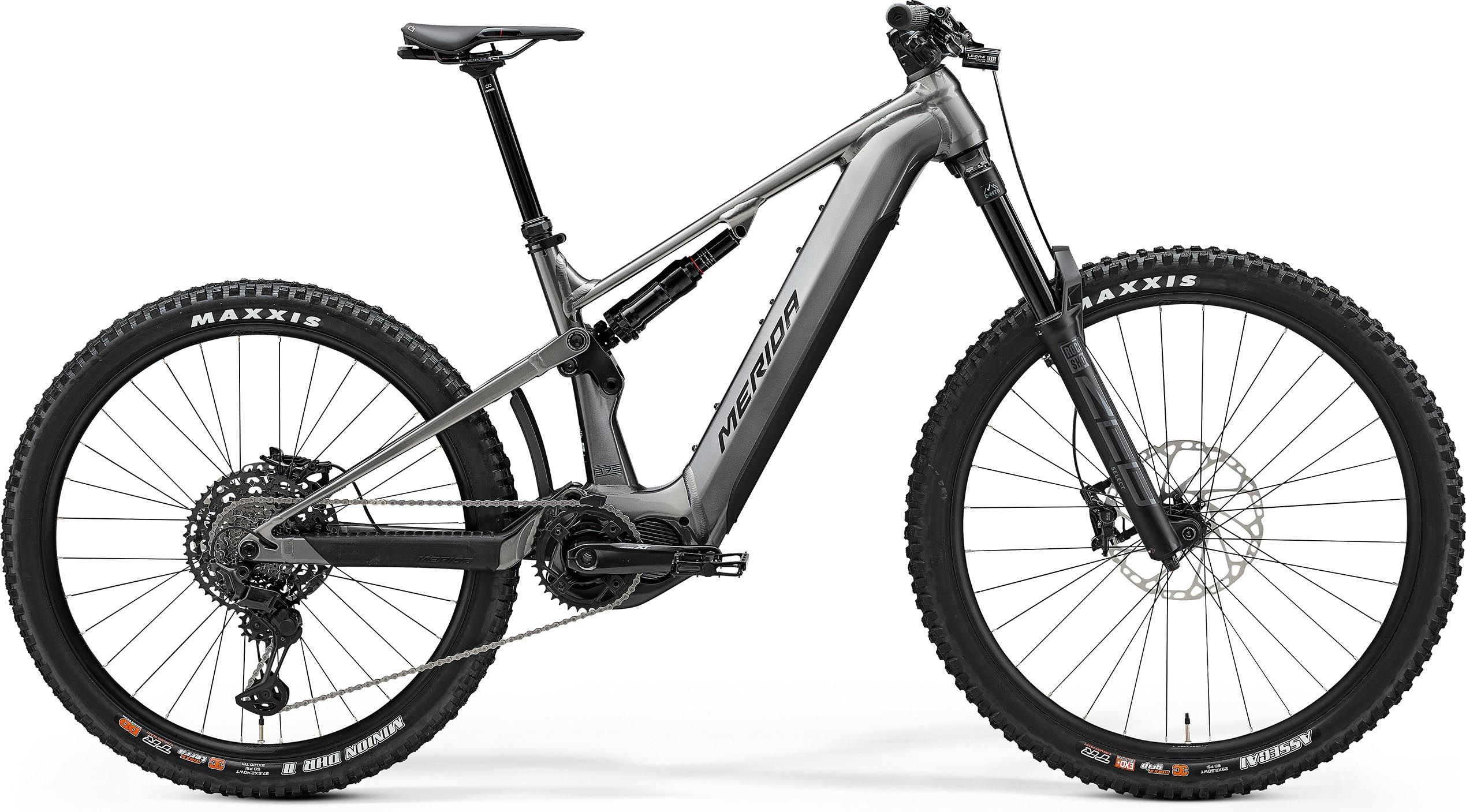

Our LITE aluminium frame is equipped with a Shimano Steps 85Nm EP801 motor and a removable 750 Wh battery, Marzocchi Z1 170mm travel forks and Marzocchi Bomber shock, Hard wearing Shimano LinkGlide componentry, Maxxis tyres and a tubeless ready mullet wheelset

With the new eOne-Sixty, the next descent is always about to start. Our aluminium frame offersgreat value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery. A 360 Wh range extender is available separately. The only reason to stop will be because you have to.

Our capable, uodated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents. Our proven FAST kinematic suspension will take care of anything the trail throws at it. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry thats been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.

Highlights:

Aluminium frame with 174 mm rear wheel travel
Shimano EP801 85Nm motor with removable 750 Wh battery
Marzocchi fork with 170 mm travel and Marzocchi Bomber rear shock
Hardwearing Shimano XT Linkglide drivetrain
Shimano Deore hydraulic disc brakes

Frame	Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
Motor	Shimano EP801; 85Nm
Battery	Trendpower Internal Battery Gen 2; 750Wh
Battery Capacity	750Wh
E-Bike Display	Shimano SC-EM800
Charger	Trendpower EU Smart Charger; 4A
Mode Switch	Shimano SW-EM800-L
Shock	Marzocchi Bomber Air; platform
Fork	Marzocchi Z1 eMTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6"
Gears	10 Speed
Shifters	Shimano SL-MT500-L dropper lever with Shimano XT M5130-10 shifter
Rear Derailleur	Shimano XT RDM5130 LinkGlide 10
Bottom Bracket	Part of Shimano Steps motor
Chain	Shimano LG500
Chainset	FSA 1x Steel chainring; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide
Cassette	Shimano LG400; 11-43 teeth; 10 Speed
Brake Lever	Shimano Deore M6120
Front Brake	Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
Rear Brake	Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor
Grip	Merida Expert EC
Handlebar	Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise
Stem	Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes
Headset	Acros ICR Merida external neck with Blocklock
Pedal	VP VPE-527
Saddle	Merida Comp SL; 28% recycled material; V-mount; including Merida minitool
Seatpost	Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L: 200mm seat post travel - XL: 230mm seat post travel
Wheel Size	29/27.5
Rims	Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
Spokes	Black stainless
Front Hub	Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear Hub	Shimano TC600-HM-B; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
Front Tyre	Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip
Rear Tyre	Maxxis DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra
Front Light	Lezyne E-BIKE POWER STVZO E115,
Rear Light	Lezyne LED FEMTO USB REAR STVZO
