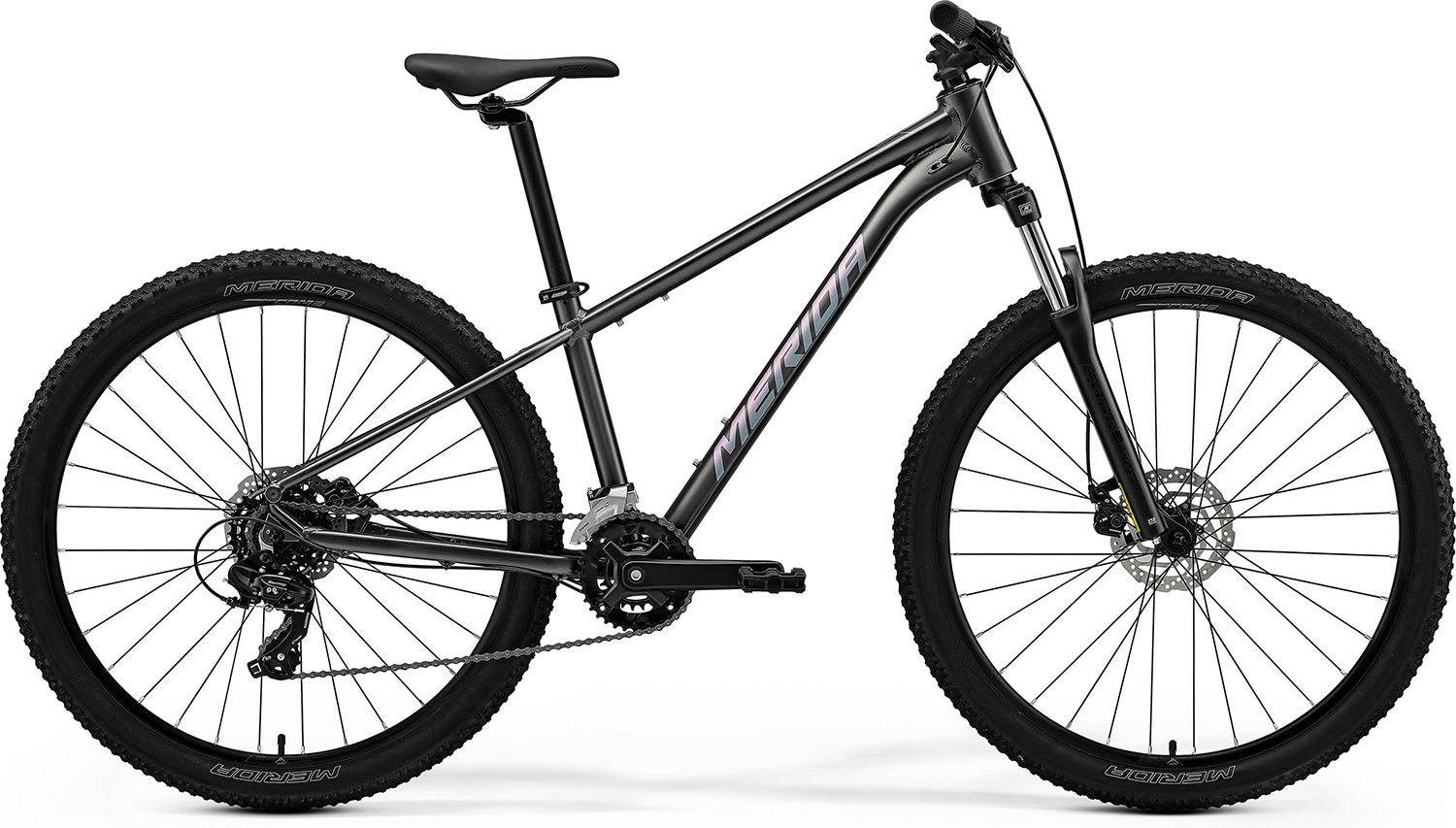

27.5 hardtail with sophisticated TFS aluminium trail ready geometry frame, Shimano 2 x 7 drivetrain, SR Suntour 100mm fork, mechanical disc brakes, Shimano hubs, cassette and chainset.
Meridas expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven.
Highlights:
Frame |
TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.4" |
Fork |
SR Suntour XCE28; Coil; 100 mm travel; 27x2.25" max. tyre size |
Gears |
14 |
Shifters |
Front: Shimano Altus EF-500-2L, Rear: Shimano Altus EF-500-7R |
Front Derailleur | Shimano Altus FD-M315 |
Rear Derailleur | Shimano Tourney TY300 |
Bottom Bracket | FSA TH-7420ST; 73-127.5mm |
Chain |
KMC Z7 |
Chainset | Prowheel TM-CY10; 36-22 tooth chainset; material: aluminium; Crank length: 165mm |
Cassette | Shimano CS-HG210-7; 12-32 teeth; 7 speed |
Front Brake | Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm |
Rear Brake | Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm |
Grip |
Merida EC |
Handlebar | Merida CC; material: aluminium; 15mm rise; (XXS-XS) - 700mm wide, S - 720mm wide |
Stem | Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise |
Headset | FSA NO.55R/57SC/57B |
Pedal | VP VPE-891 |
Saddle |
Merida Sport |
Seatpost | Merida CC; material: aluminium; 30.9mm diameter; 15mm layback |
Wheel Size | 27.5" |
Rims | Merida Comp CC; 20mm inner rim width; material: aluminium |
Spokes | Black steel |
Front Hub | Shimano TX505; 100x9mm; 32 Spoke; Centerlock |
Rear Hub | Shimano TX505; 135x9mm; 32 Spoke; Centerlock |
Front Tyre | Kenda K1080; 27.5x2.2" |
Rear Tyre | Kenda K1080; 27.5x2.2" |
Colour | Silk Gunmetal Grey (Blue) |
