Make some space in the trophy cabinet - our top-tier race hardtail with our lightest CF5 carbon fibre frame is paired with our progressive geometry and the finest kit money can buy for ultimate performance.
The latest generation Big Nine 10K is Meridas utterly modern take on a cross-country race hardtail. Completely revised frame design with progressive geometry and Agilometer sizing, it delivers ruthlessly efficient uphill performance with more descending ability than ever before, plus more fatigue reducing compliance.
Highlights:
Frame |
CF5 III - Super lightweight carbon; Boost axle standard, BSA BB standard, Max. tyre size 29" x 2.4" |
Fork |

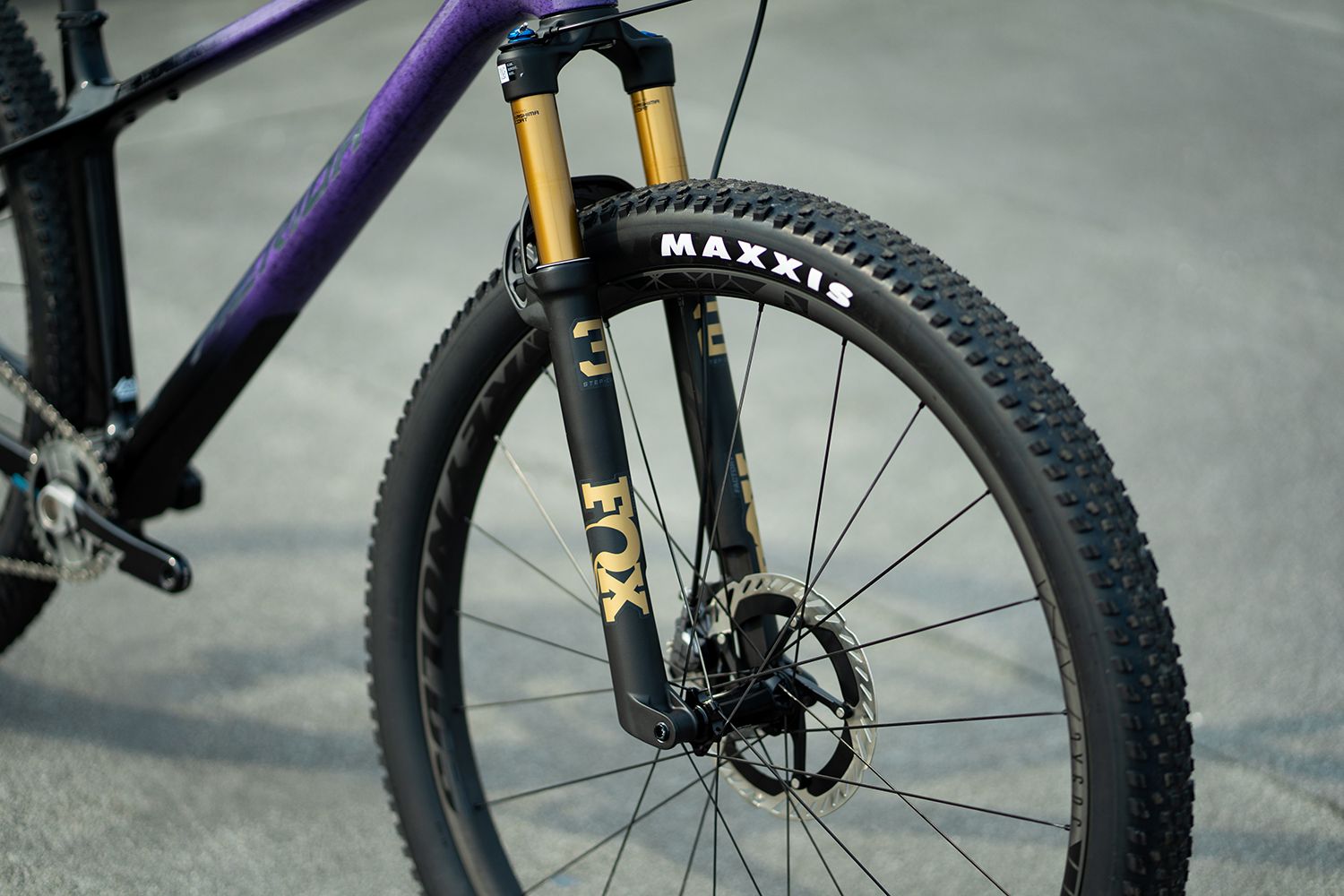

Fox 32 SC Factory; Air; 100mm travel; Tapered; 2 Position remote lockout; 44mm fork offset; Max. tyre size 29" x 2.4" |
Shifters |
Shimano XTR M9250; wireless |

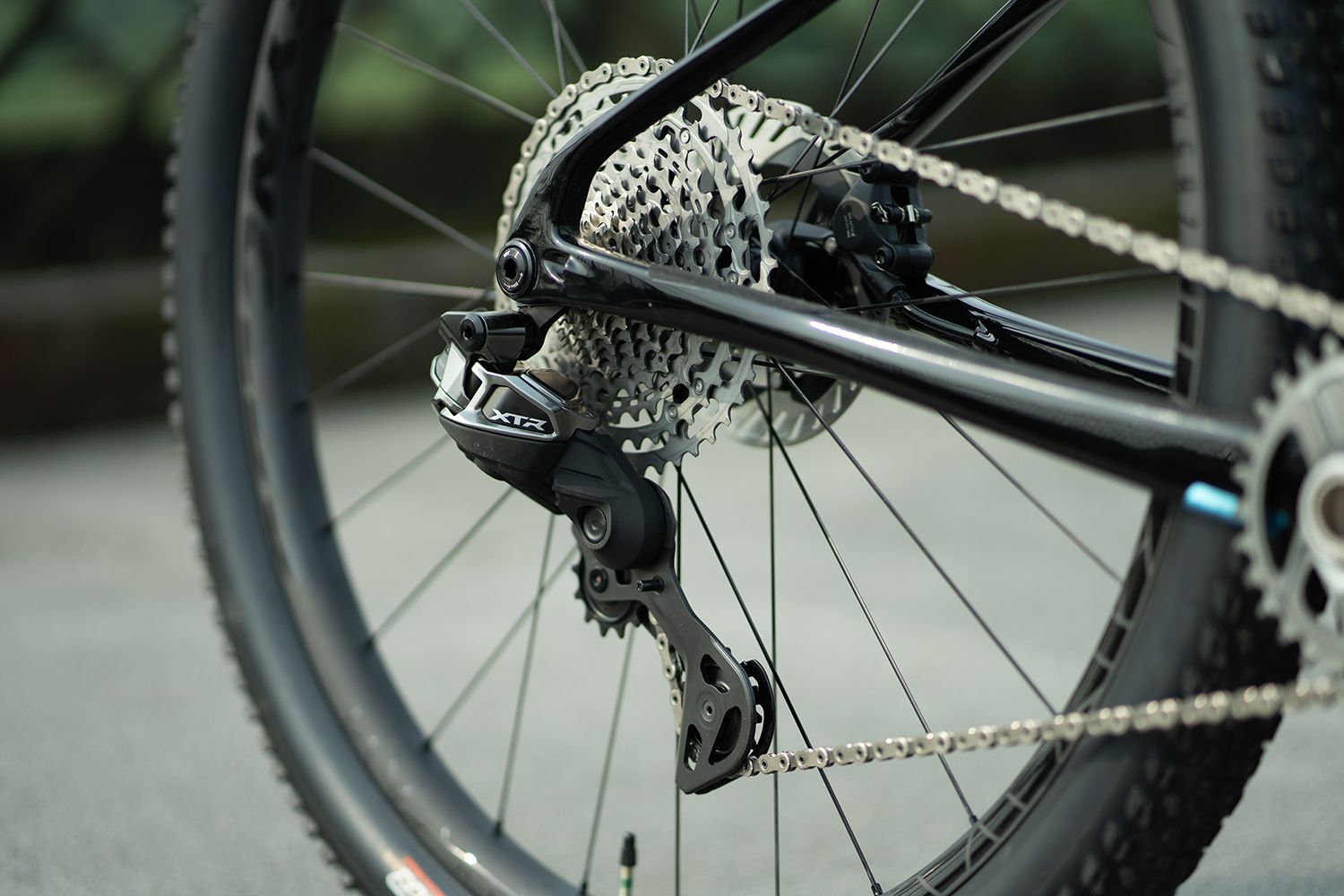

Rear Derailleur | Shimano XTR M9250; wireless; Shadow+ GS |
Bottom Bracket | Shimano MT900; BSA; 29mm axle |
Chain |
Shimano XTR M9100 |

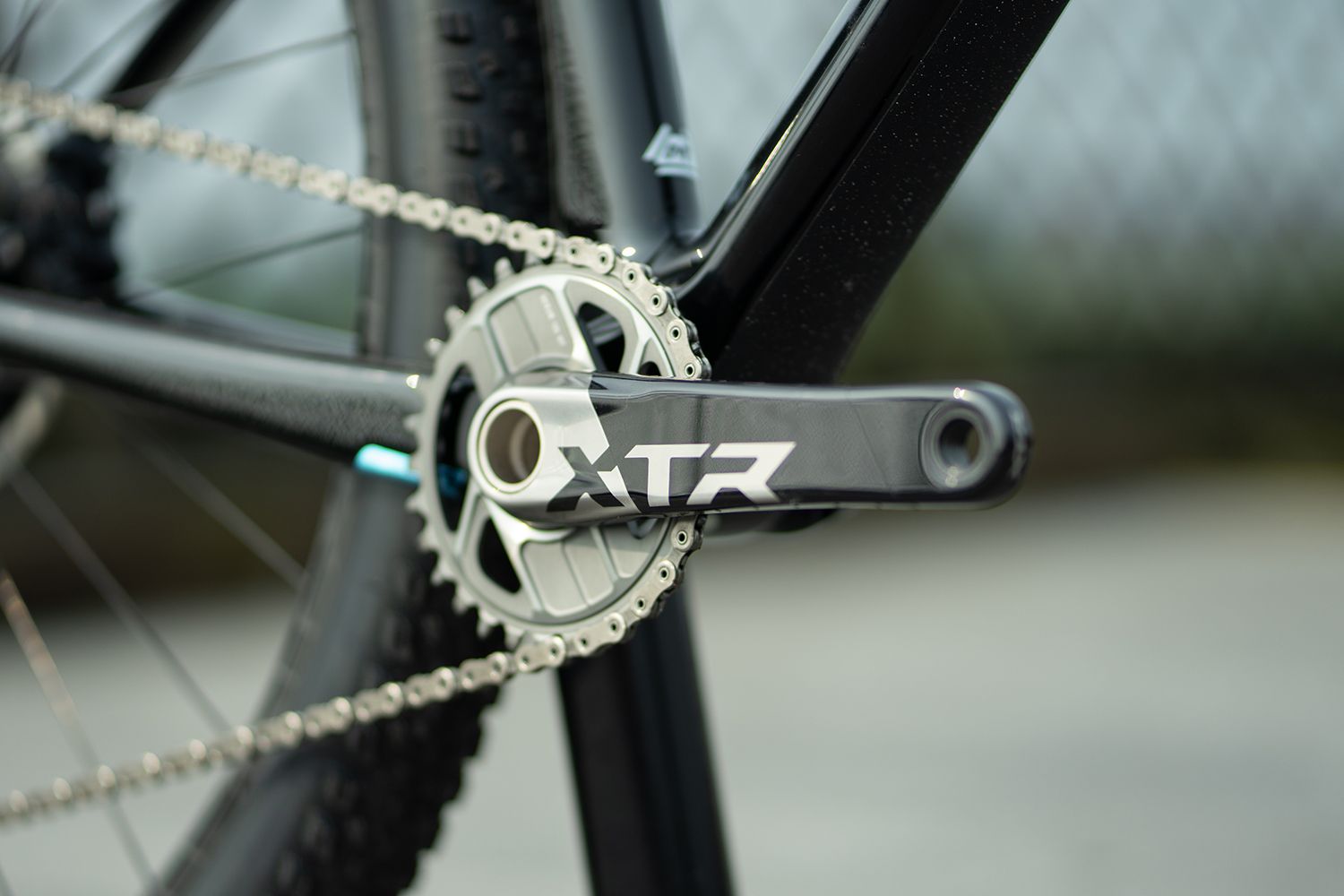

Chainset | Shimano XTR M9220; 30 tooth chainset with 170mm (S), 175mm M and above |
Cassette | Shimano XTR M9200; 10-45 teeth; 12 speed |
Brake Lever |
Shimano XTR |
Front Brake | Shimano XTR M9220; 2 piston hydraulic disc brake with Shimano RT-CL900 180mm rotor |
Rear Brake | Shimano XTR M9220; 2 piston hydraulic disc brake with Shimano RT-CL900 180mm rotor |
Grip |
Merida Team CC |

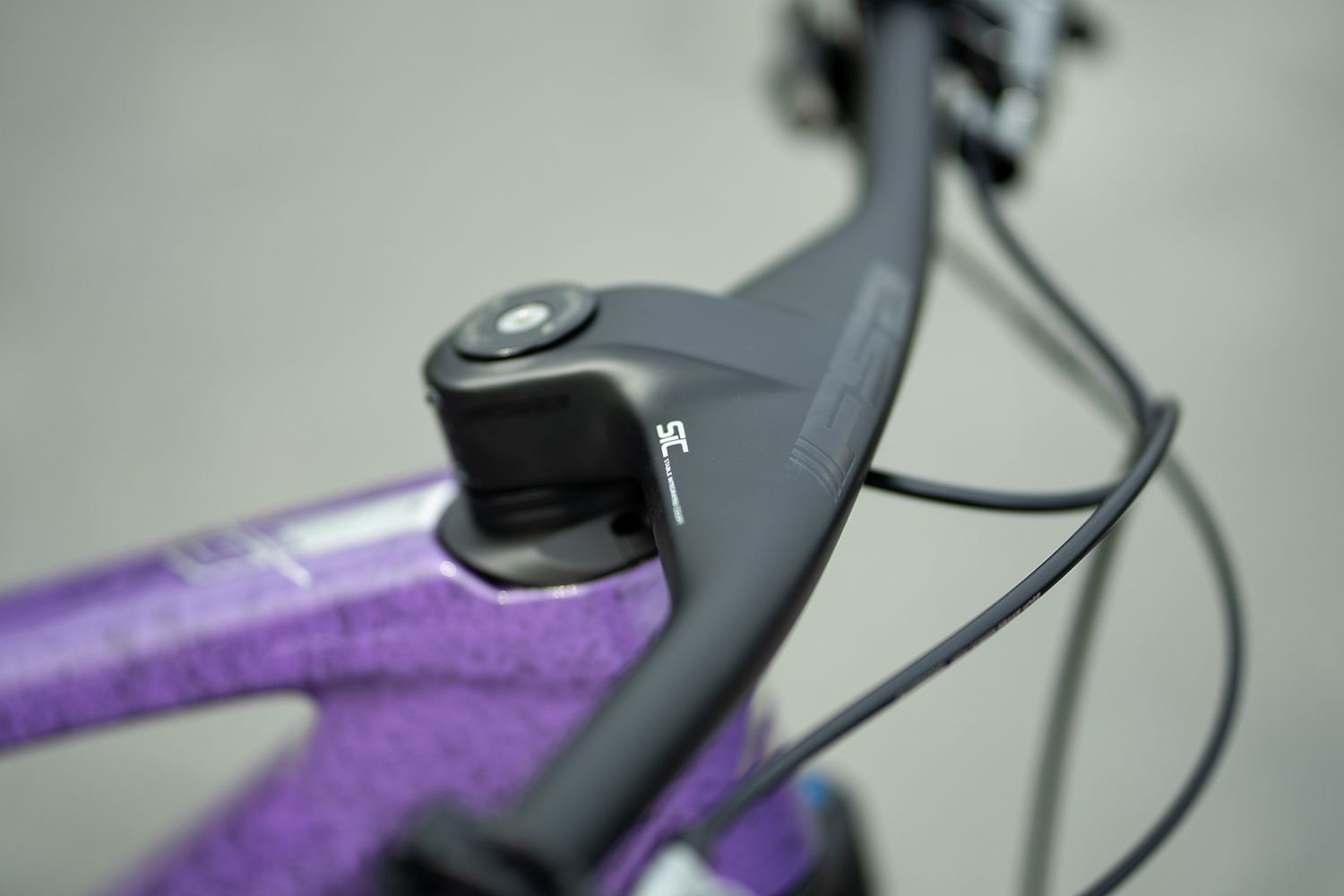

Handlebar | Integrated FSA SL-K 1-piece cockpit; carbon; 760mm wide, -7° rise; length: 60mm (S/M); 70mm (L/XL), 80mm (XXL) |
Stem | Integrated FSA SL-K 1-piece cockpit; carbon; 760mm wide, -7° rise; length: 60mm (S/M); 70mm (L/XL), 80mm (XXL) |
Headset | Acros ICR Merida integrated neck; Upper and lower IPS sealing |
Pedal | Not included |
Saddle |
Prologo Scratch M5 PAS Nack; V-mount adapter; incl. Merida minitool |
Seatpost | FSA SL-K; carbon; 30.9mm diameter; in-line |
Wheel Size | 29 |
Rims | Reynolds Blacklabel 309 XC; carbon; Tubeless ready (tubeless tape and valves included); Lifetime warranty |
Front Hub | Part of wheelset - Reynolds Blacklabel 309 XC; 110 x 15mm; Centerlock |
Rear Hub | Part of wheelset - Reynolds Blacklabel 309 XC; 148 x 12mm; Centerlock; SRAM 12 Speed with Merida Expert TR axle; including removeable lever, 6/4mm allen key |
Front Tyre | Maxxis Rekon Race; 29 x 2.4" WT; tubeless ready; 3C MaxxTerra EXO |
Rear Tyre | Maxxis Rekon Race; 29 x 2.4" WT; tubeless ready; 3C MaxxTerra EXO |
Colour | Purple/Black |
