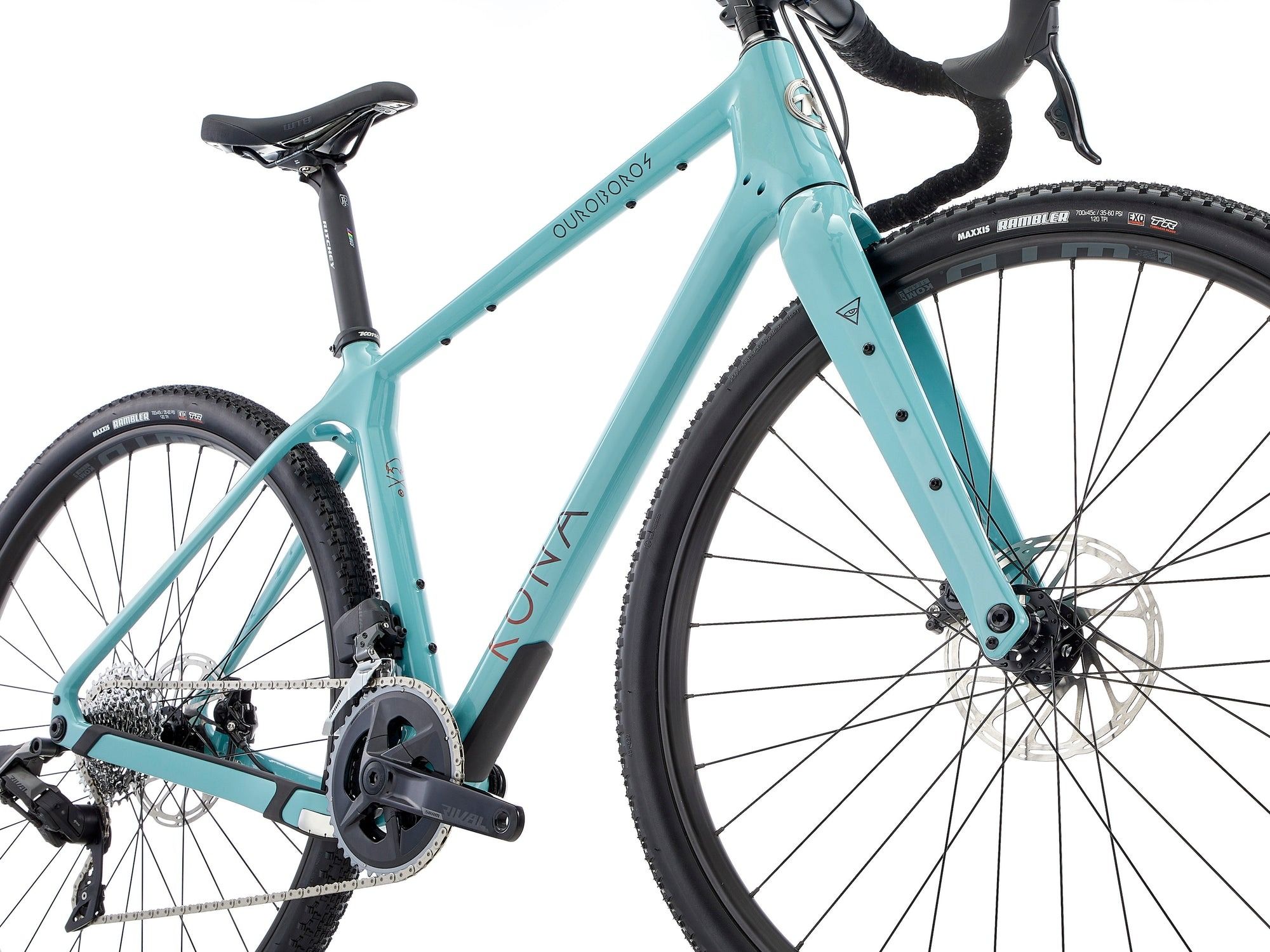

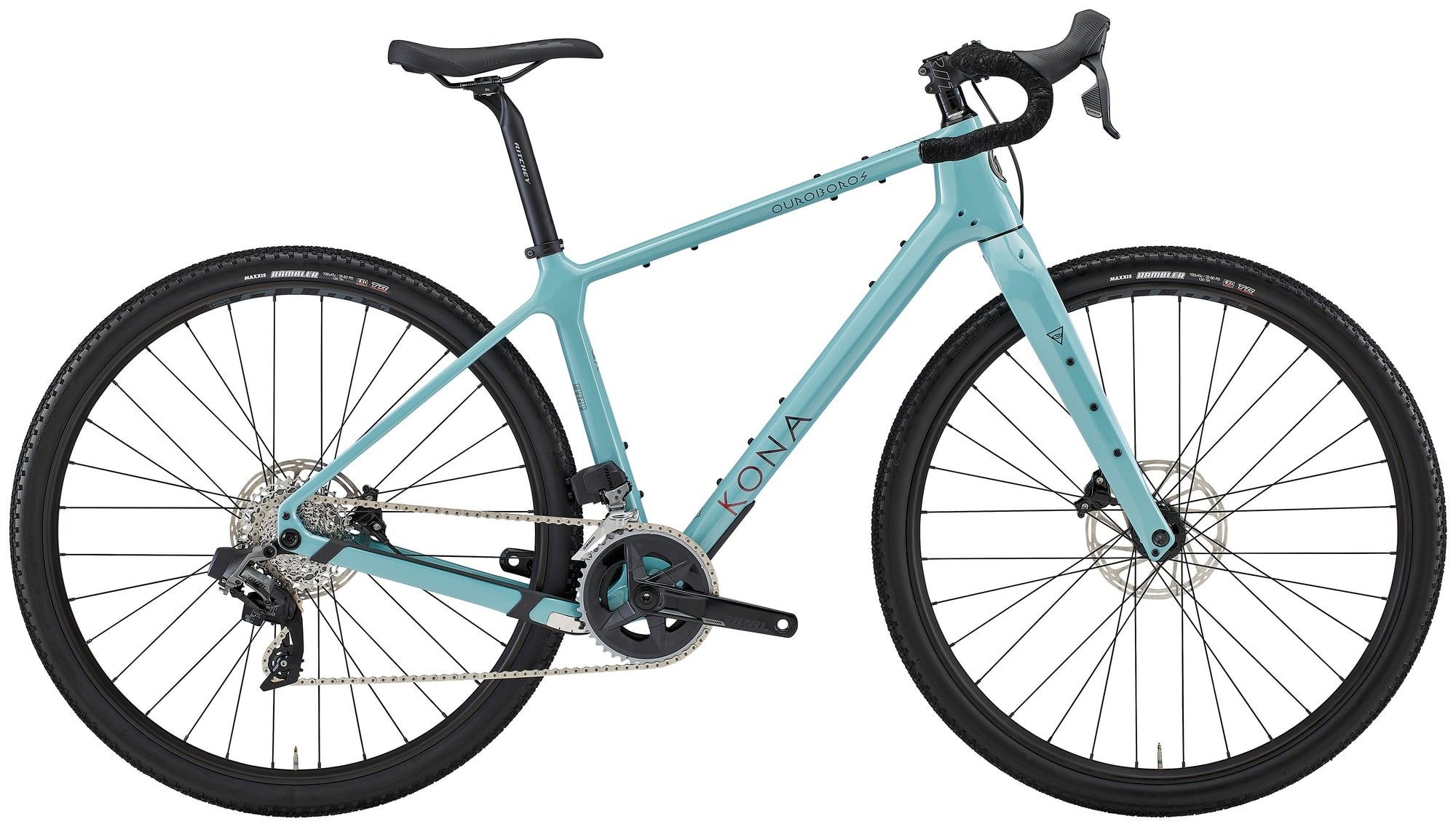

An absolutely stunning gravel bike for those who seek a more traditional look and feel. This creation prioritises lightweight features and adheres to the sacred and long-established characteristics of a drop bar bike.

We’ve thoughtfully spec’d gear steps that are closer together to help you maintain your ideal cadence. With that sweet spot so easy to find, you won’t lose your rhythm – no matter your load or speed.

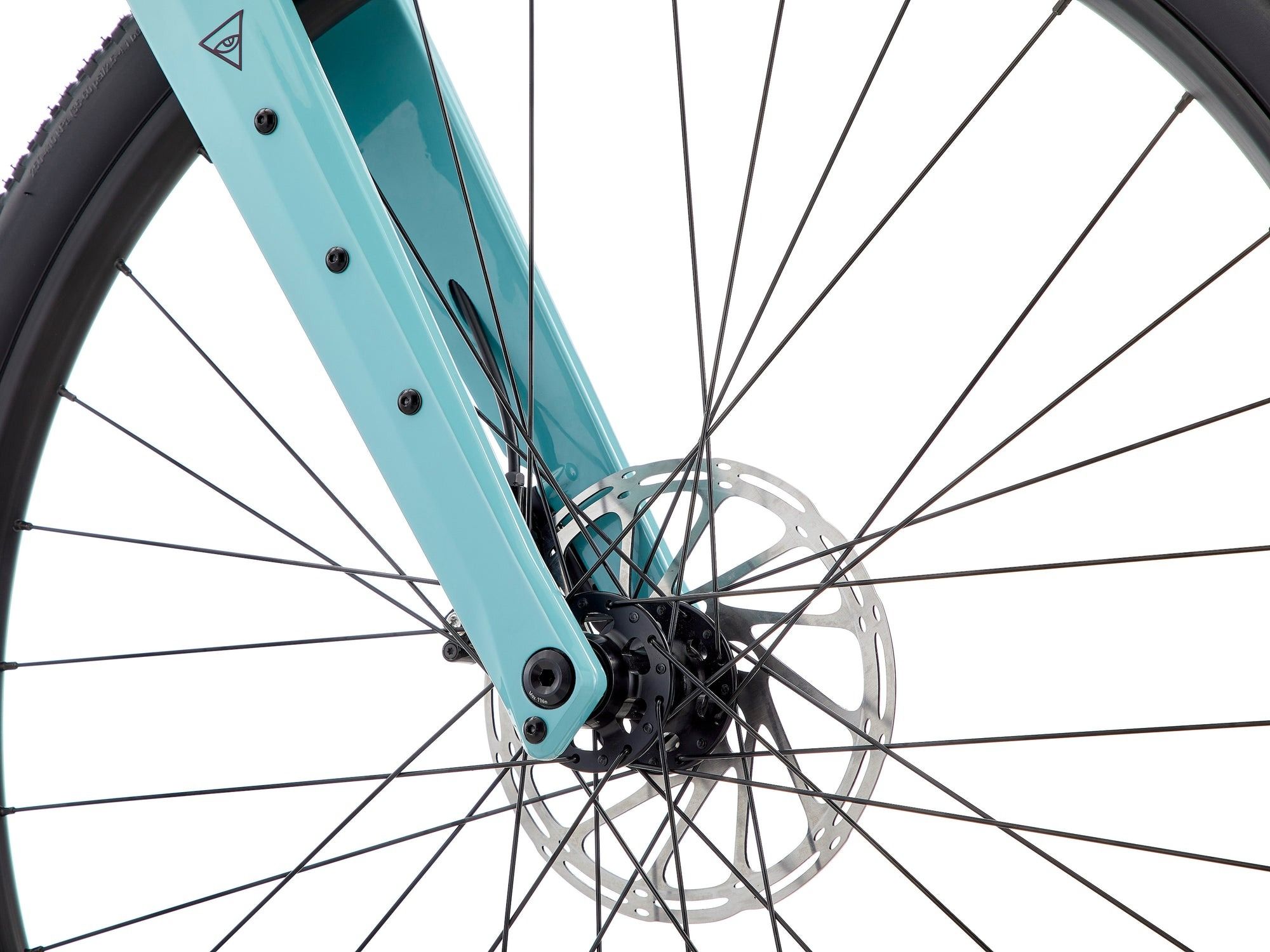

Carbon fork w/ 3-pack WB bosses, dynamo routing, native 160 flat mount, and rack/fender mounts
Carbon frame w/ tons of WB boss mounts for frame bags/bento box
Best bikepacking spec (Rival 2x Wide AXS, carbon carry-everything fork, serviceable hubs, rigid post)
SRAM Rival AXS Wide groupset
Rival 43/30t DUB Wide crankset
10-36t 12s cassette
Rival hydraulic brakes

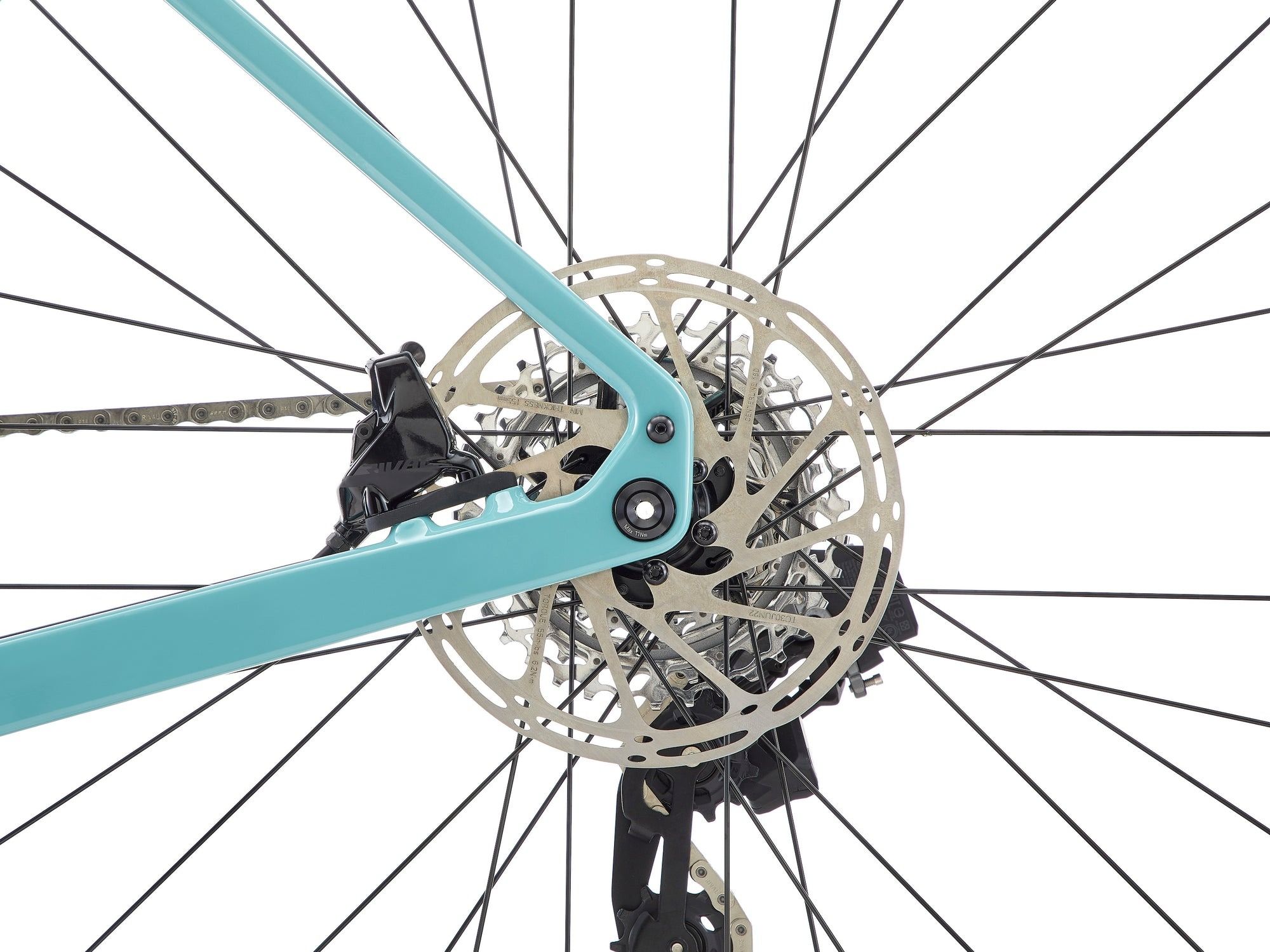

KT hubs use STAR ratchet, copied tech from DT Swiss, use interchangeable ratchet, loop spring
6 bolt rotors can be tightened w/ multi-tool on extended trips
Maxxis Rambler 700 x 45 tires for lightweight/ speedy setup
Available as frameset including carbon fork

SPECIFICATIONS

Frame Material	Kona Carbon
Sizes	48, 50, 52,54, 56, 58
Rear Shock	n/a

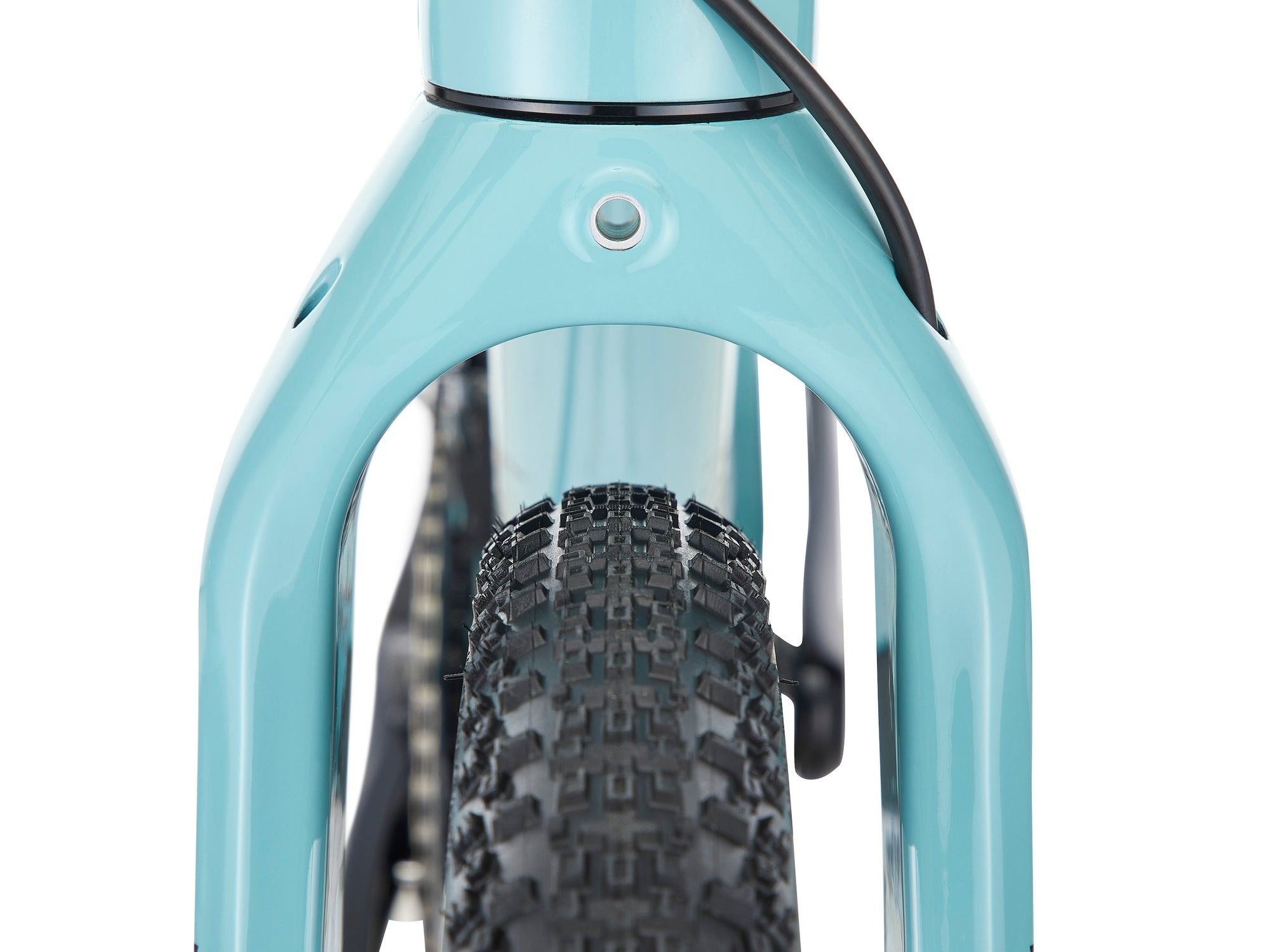

Fork	Kona Ouroboros Carbon, 420 axle to crown, tapered 1.5 (28.6 - 38.1), 100 x 12mm, internal brake and dynamo routing, native 160 flat mount front, 3-pack bosses + fender mounts
Crankarms	SRAM Rival DUB Wide
Chainrings	SRAM Rival 43/30 Wide

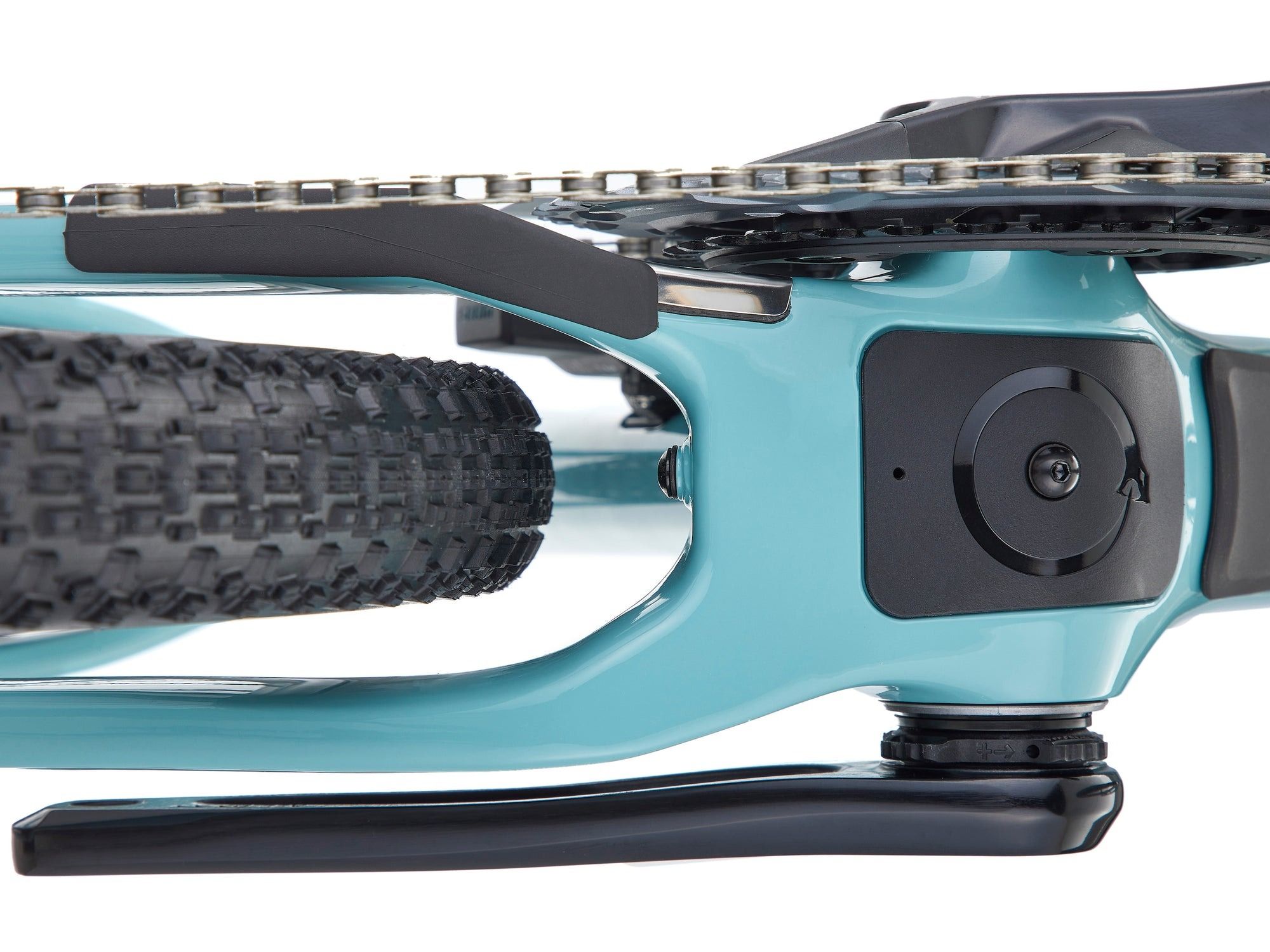

B/B	SRAM Press-Fit 86.5 DUB Wide
Pedals	n/a
Chain	SRAM Rival 12 speed

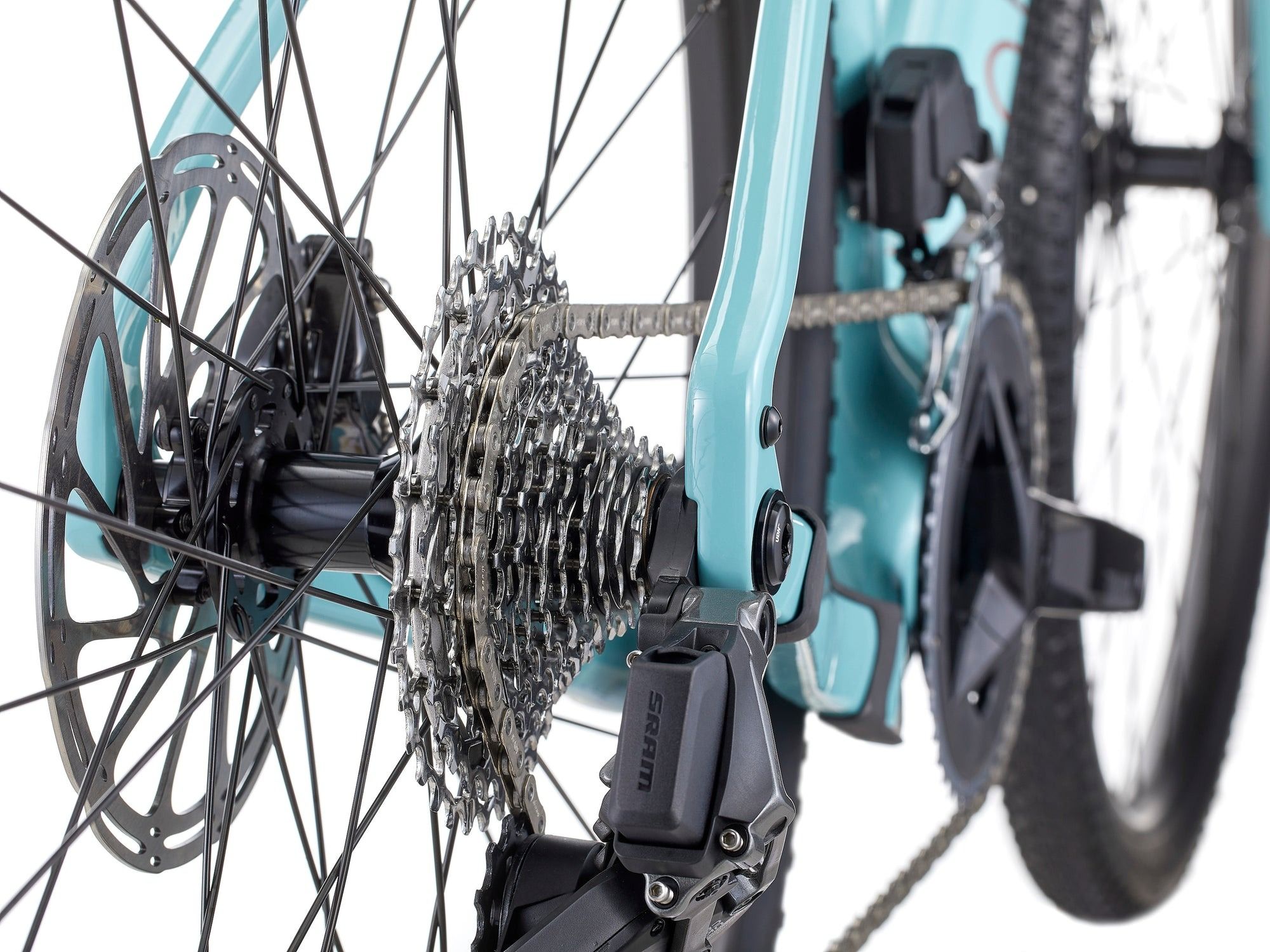

Cassette	SRAM Rival XG-1250 10-36t 12 speed XDR cassette
Chainguide	n/a
F/D	SRAM Rival ETAP AXS Wide
R/D	SRAM Rival ETAP AXS
Shifters	SRAM Rival ETAP AXS

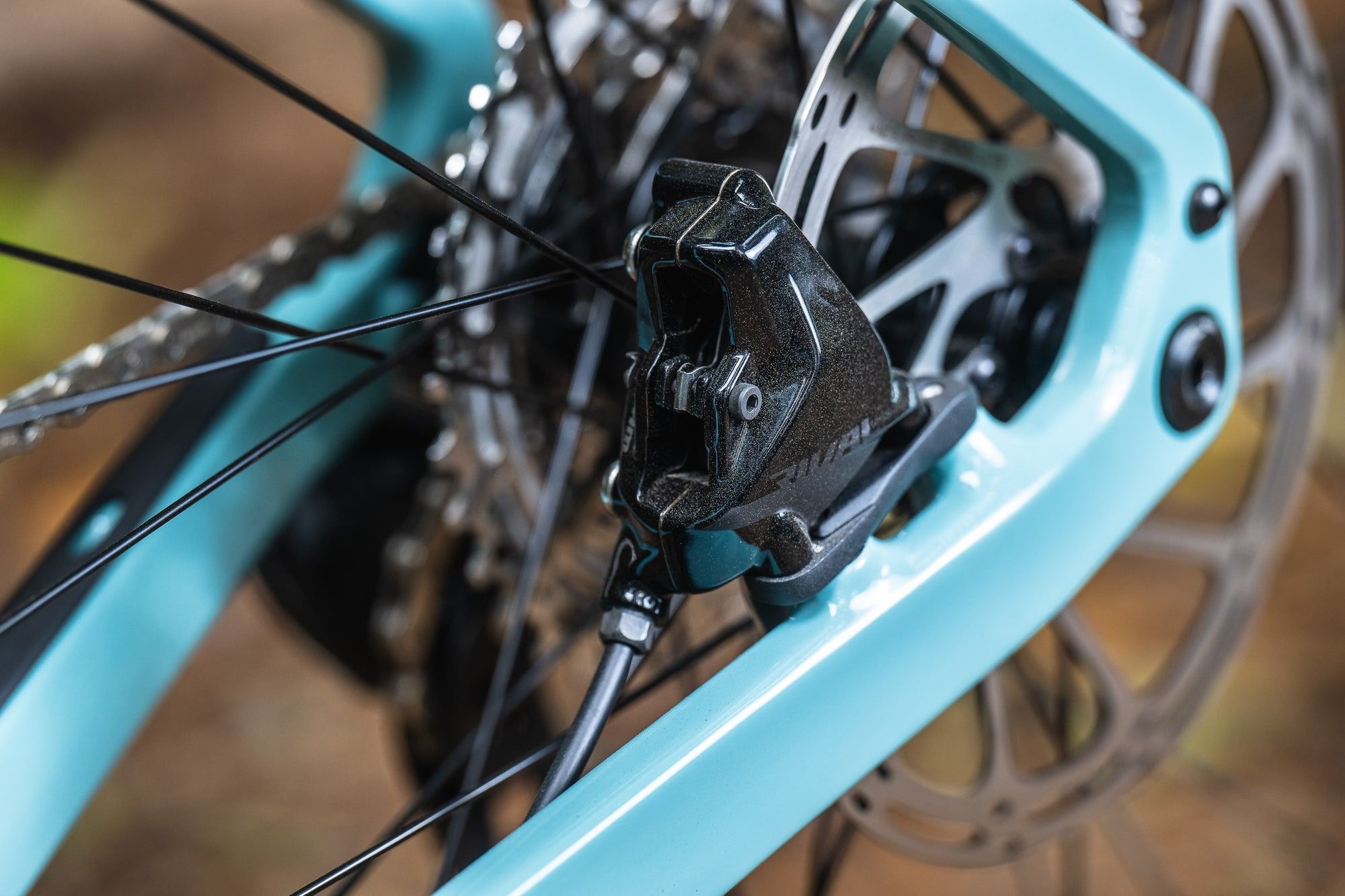

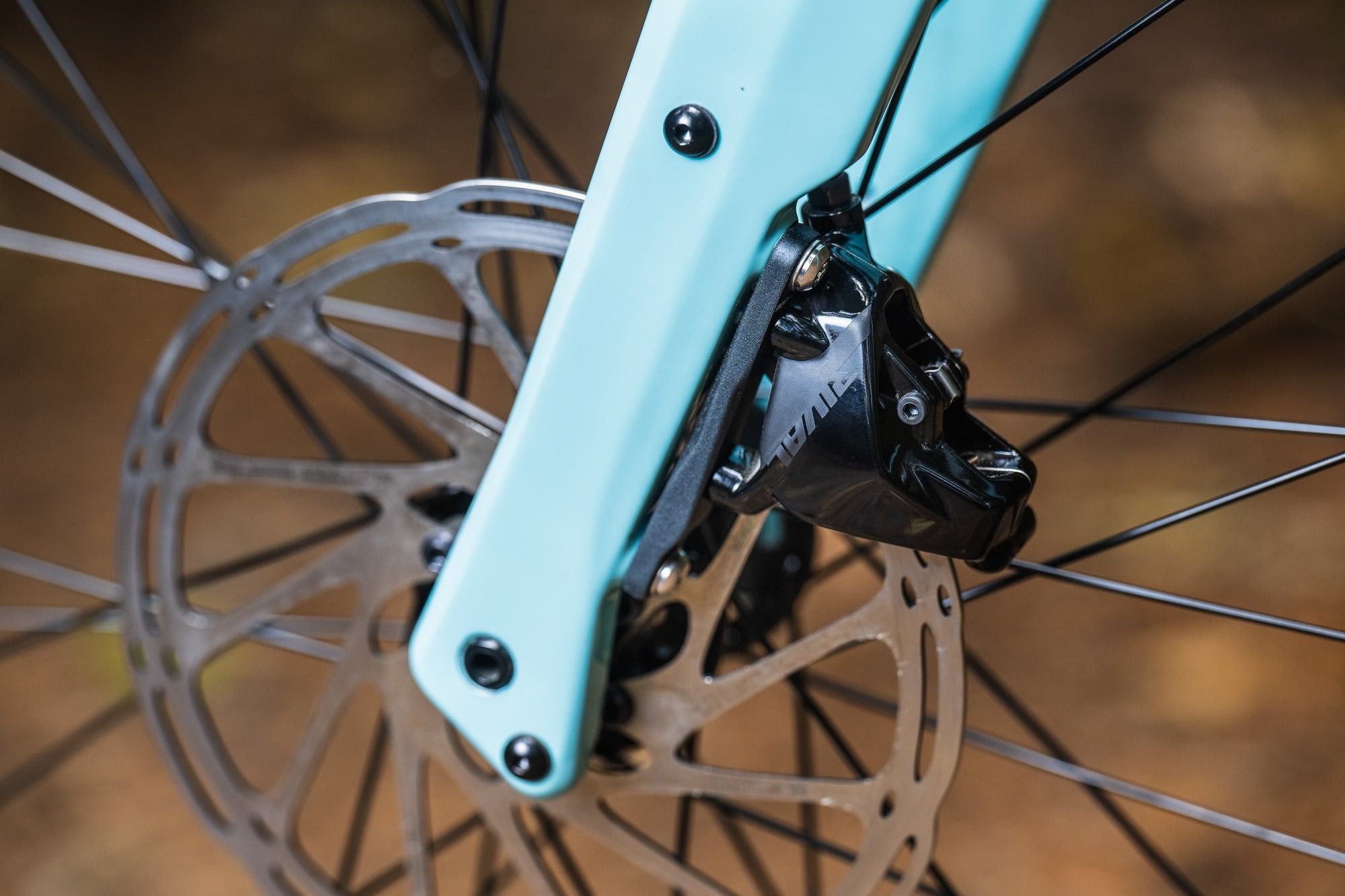

Brake Calipers	SRAM Rival Flat Mount Hydraulic
Front Brake Rotor	SRAM Centerline 6-bolt 180mm
Rear Brake Rotor	SRAM Centerline 6-bolt 180mm
Brake Levers	SRAM Rival ETAP AXS
Headset	FSA Orbit No. 57, ZS 44/56

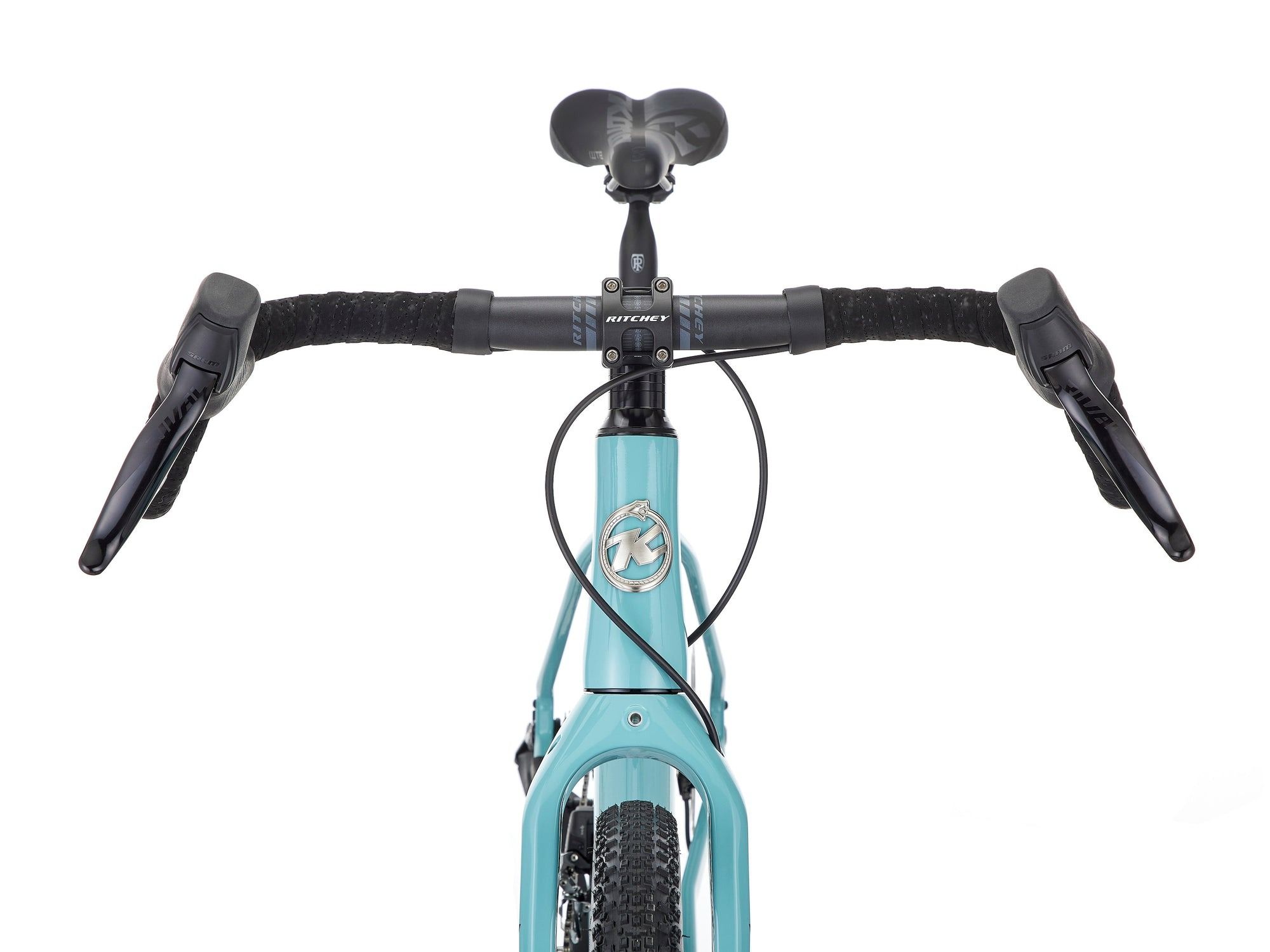

Handlebar	Ritchey Venturemax Comp/Venturemax XL Comp, 24-degree flare, 4.6 degree backsweep; 48-50: 460mm, 52-54: 480mm, 56: 500mm, 58: 520mm
Stem	Ritchey Trail Comp, 0-degree, 48-52: 45mm; 54-58: 60mm
Seatpost	Ritchey Link 20 WCS, 31.6mm, 20mm setback, 48-52: 350mm; 54-58: 400mm
Seat Clamp	Kona 34.9mm
Grips	Velo bar tape
Saddle	WTB Volt Medium Steel SL
Front Hub	KT-Taiwan QL-S3GR, 100 x 12, 32h, 6-bolt
Rear Hub	KT-Taiwan QL-DD4DR, 142 x 12, 32h, 6-bolt, XDR freehub, STAR ratchet
Spokes	Double butted stainless
Rims	WTB KOM i27 6069 alloy, 32h, TCS 2.0, with tubeless tape
Front Tire	Maxxis Rambler 700 x 45 TR EXO
Rear Tire	Maxxis Rambler 700 x 45 TR EXO
Paint Color	Gloss Harbor Grey w/ Plum & Bloodstone Decals
Extras	batteries, charger

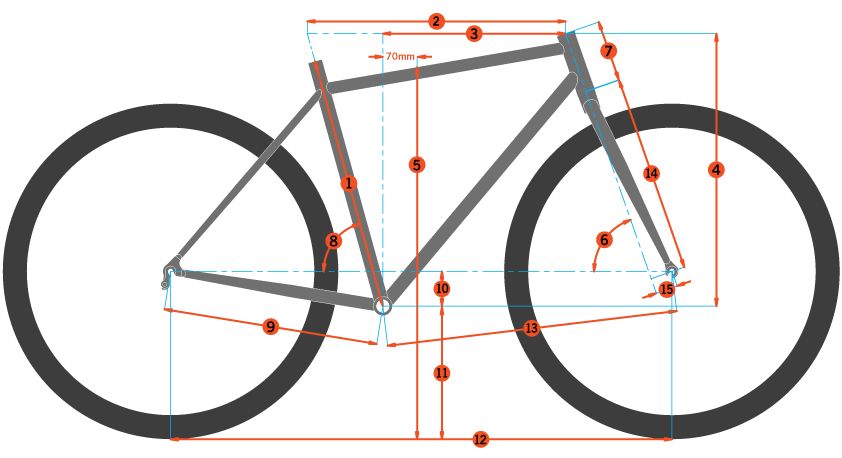

GEOMETRY

	Size	48	50	52	54	56	58
1	ST Length	410	410	455	455	500	535
2	TT Length	530	544	559	576	593	613
3	Reach	380	385	390	395	400	405
4	Stack	560	575	590	610	630	660
5	Standover	716	721	758	768	806	840
6	HT Angle	69.5	69.5	69.5	69.5	69.5	69.5
7	HT Length	115	131	147	172	193	225
8	ST Angle	75.0	74.5	74.0	73.5	73.0	72.5
9	CS Length	445	445	445	445	445	445
10	BB Drop	75	75	75	72	72	72
11	BB Height	285	285	285	288	288	288
12	Wheelbase	1059	1069	1080	1094	1106	1123
13	Front Center	625	635	646	659	671	687
14	Fork Length	420	420	420	420	420	420
15	Fork Offset	55	55	55	55	55	55
