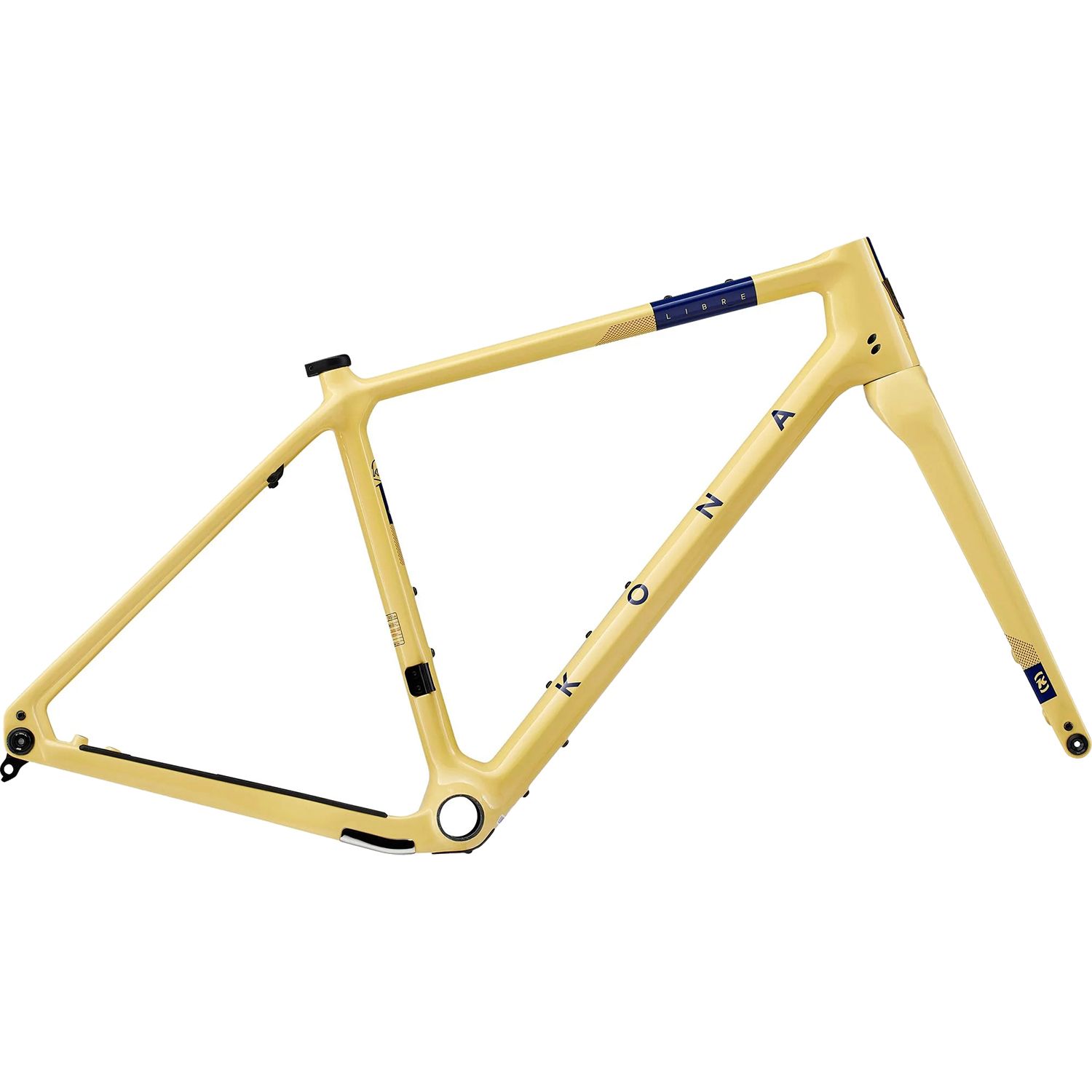

Kona Libre CR G2 Gravel Bike Frameset

Product ID: 94768_

Take the feathery light weight but super strong Libre frame, with its sweet geometry that is just at home crushing gravel as it is ripping turns, with all that tire clearance and all those places to mount water bottles and such, and use it as the starting canvas for your adventure dream build. Wanna go rip legs off at Unbound? Libre is light enough and sharp enough to give you the edge you need. Feeling the need to bag big mountains and feast on long distance adventures? How about the speediest commuter rig that doesn’t need any batteries ever? Free your imagination, build a Libre.

LIBRE CR FRAMESET HIGHLIGHTS

• 27.2 seatpost for improved compliance
• Front triangle fits two H₂O cages with room for half-frame bag
• 160/180 flat mount brakes
• UDH/Transmission ready
• Removable seatstay/fender bridge
• Fenders fit with 700 x 45 tires
• Removable FD mount plate
• 48, 50, 52, 54, 56, 58 sizes

PERFORMANCE ORIENTED

• Six size options for a more improved and tailored fit
• UDH compatible
• Updated flat mount spec (20mm larger)
• Removeable SS bridge (for optional fender mounting)
• Dropper post compatible

LONG DISTANCE RIDER

• 70.5 degree HTA and slightly longer reach
• Efficient pedaling position

	Size	48	50	52	54	56	58
1	ST Length	440	460	480	510	540	570
2	TT Length	527	542	556	573	590	610
3	Reach	380	385	390	395	400	405
4	Stack	550	565	580	600	620	650
5	Standover	733	752	770	799	825	855
6	HT Angle	70.5	70.5	70.5	70.5	70.5	70.5
7	HT Length	109	125	140	165	186	218
8	ST Angle	75	74.5	74	73.5	73	72.5
9	CS Length	435	435	435	435	435	435
10	BB Drop	75	75	75	72	72	72
11	BB Height	285	285	285	288	288	288
12	Wheelbase	1030	1040	1050	1064	1076	1092
13	Front Center	606	616	626	639	651	667
14	Fork Length	410	410	410	410	410	410
15	Fork Offset	50	50	50	50	50	50
