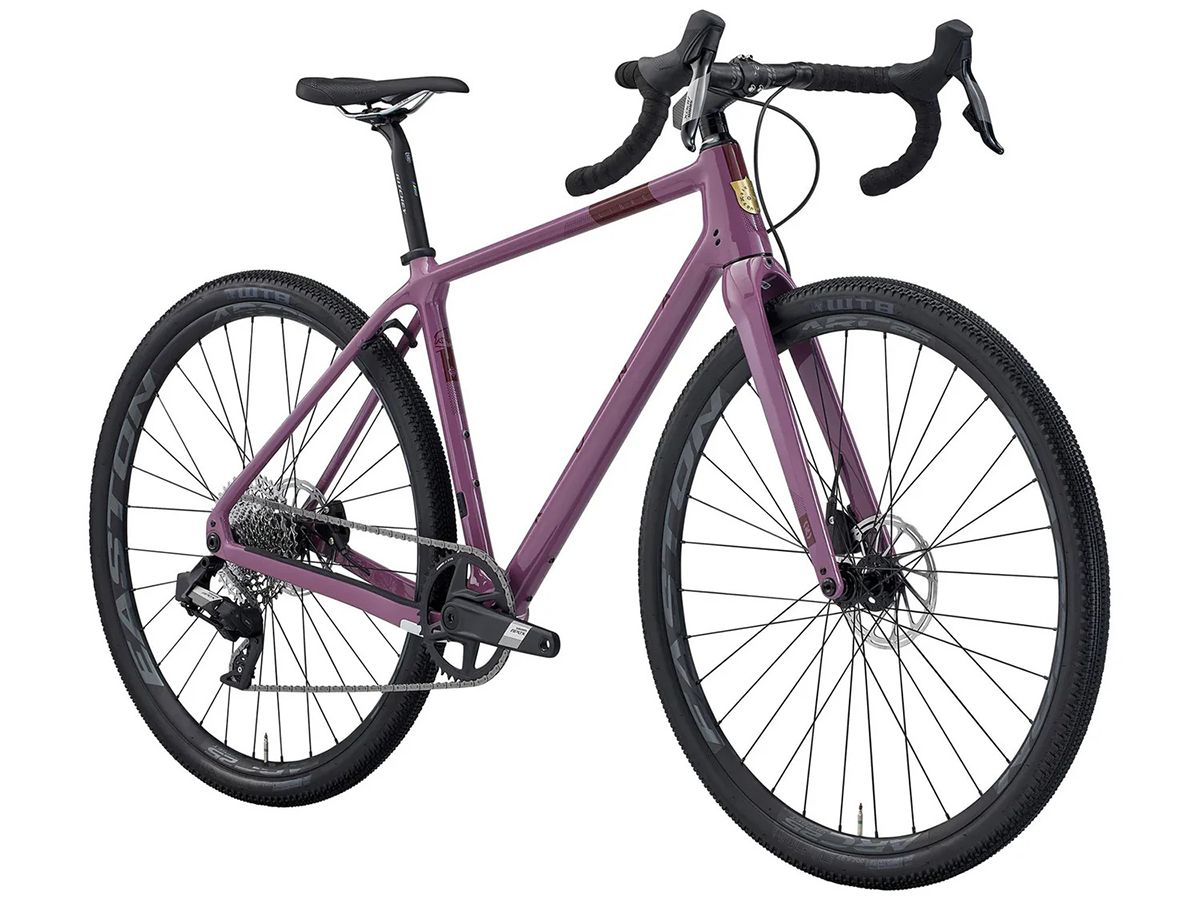

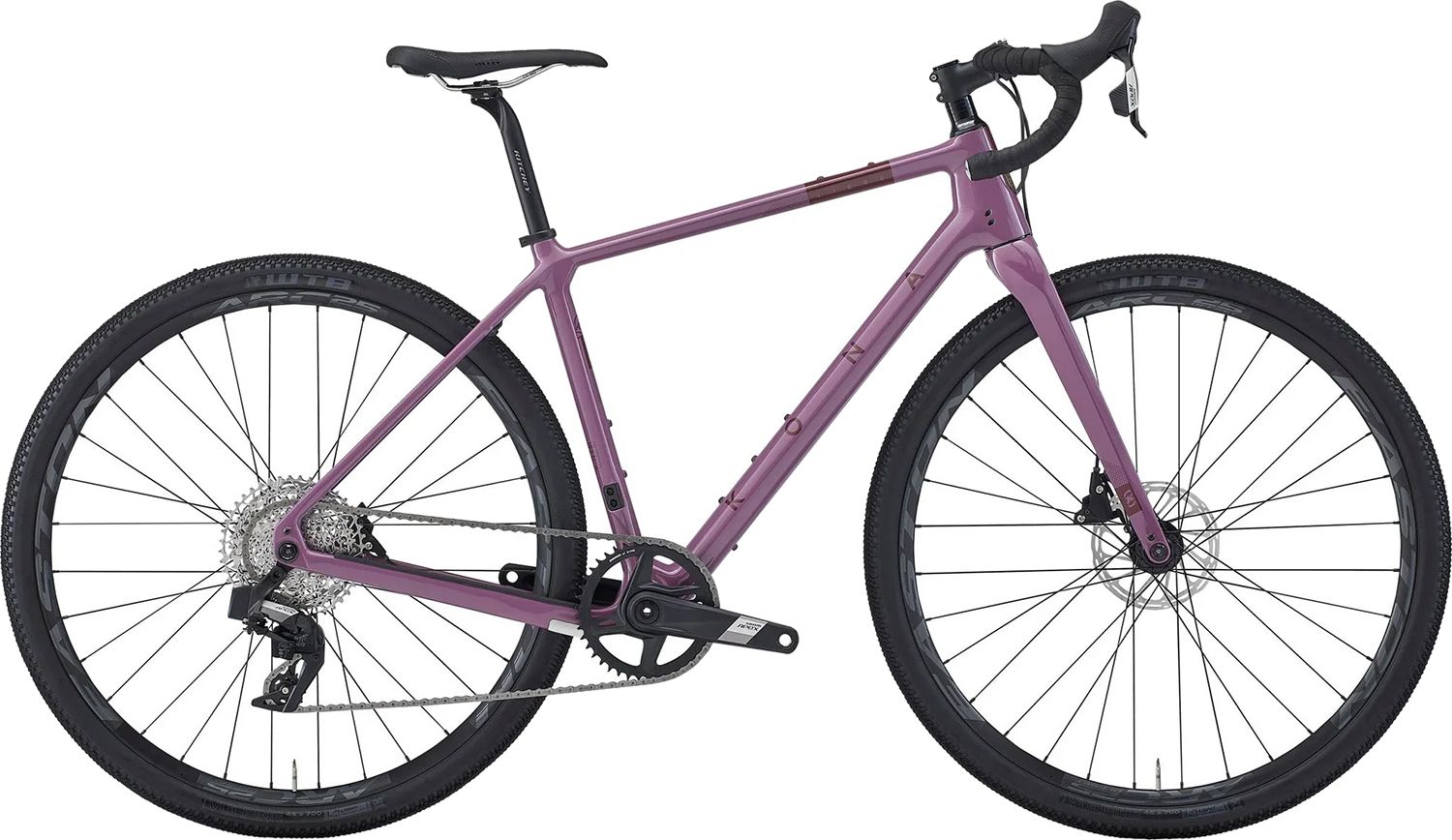

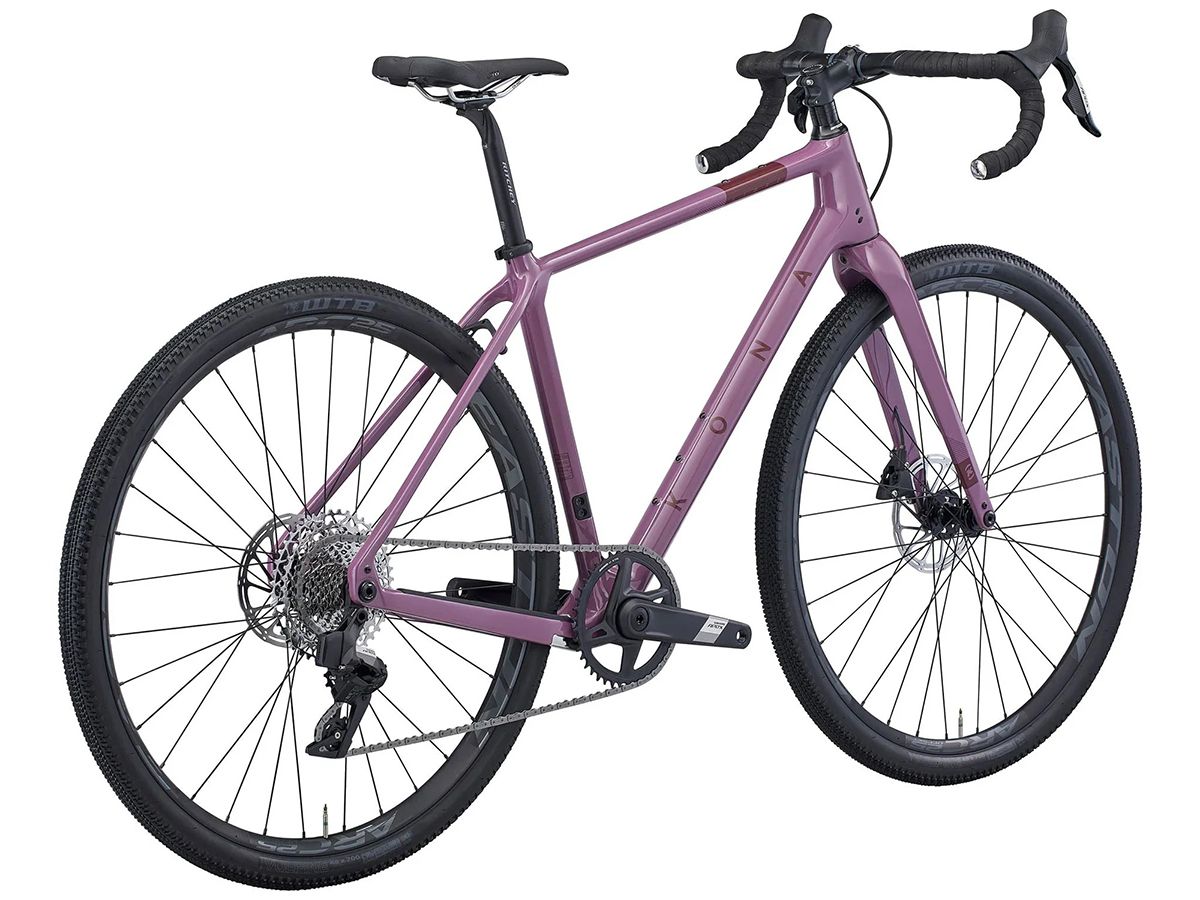

Kona Libre CR G2 Gravel Bike

Product ID: 94767_

Somewhere between the stable but often sluggish beast of burden world of touring and the highly strung, tightly focused realm of road performance, there exists a need for a drop bar bike that can grind out mile after mile of washboard gravel and still snap to attention when you stomp on the pedals. It needs to be fast, with geometry relaxed and composed enough to eat all that gravel without a twitch, but still sharp enough to carve turns on pavement with authority. Build it out of carbon fiber, so it’s super light, but plenty strong as well. Festoon it with bosses for lots of water bottles and bento mounts, but don’t go crazy. Lots of tire clearance, just in case. Sharp, but smooth. Fast, but comfortable. Gravel all day, pavement whenever you want.

• SRAM Apex AXS XPLR drivetrain and brakes
• Ritchey Butano Comp Internal handlebar with18 degree flare
• Ritchey 4axis 44 Comp stem and seatpost
• Easton ARC Offset 25 rims
• WTB Vupline TCS 700 x 45 tubeless tires
• 27.2 seatpost for improved compliance
• Front triangle fits two H₂O cages with room for half-frame bag
• 160/180 flat mount brakes
• UDH/Transmission ready
• Removable seatstay/fender bridge
• Fenders fit with 700 x 45 tires
• Removable FD mount plate
• 48, 50, 52, 54, 56, 58 sizes

SPECIFICATIONS

Frame Material	Kona Carbon
Sizes	48, 50, 52, 54, 56, 58
Rear Shock	n/a
Fork	Kona Libre Carbon Flat Mount Disc
Crankarms	SRAM Apex 1 DUB Wide
Chainrings	42t X-Sync
B/B	SRAM PF86.5 DUB Road Wide
Pedals	n/a
Chain	SRAM Apex Flattop Chain 12spd
Cassette	SRAM XPLR PG1231 11-44t 12spd
Chainguide	n/a
F/D	n/a
R/D	SRAM Apex XPLR AXS 12spd
Shifters	SRAM Apex AXS
Brake Calipers	SRAM Apex
Front Brake Rotor	SRAM Centerline 160mm
Rear Brake Rotor	SRAM Centerline 160mm
Brake Levers	SRAM Apex
Headset	FSA No.57E
Handlebar	Ritchey Butano Comp Internal
Stem	Ritchey 4-Axis 44 Comp
Seatpost	Ritchey Link 20 WCS
Seat Clamp	Kona Clamp
Grips	Kona Cork Tape
Saddle	WTB SL8
Front Hub	Formula 100x12mm
Rear Hub	Formula 142x12mm
Spokes	Stainless Black 14g
Rims	Easton ARC Offset 25
Front Tire	WTB Vulpine TCS Light DNA 700x45c
Rear Tire	WTB Vulpine TCS Light DNA 700x45c
Paint Color	Gloss Mauve w/ Dark Crimson Decals

All specifications are subject to change without notice.

GEOMETRY

	Size	48	50	52	54	56	58
1	ST Length	440	460	480	510	540	570
2	TT Length	527	542	556	573	590	610
3	Reach	380	385	390	395	400	405
4	Stack	550	565	580	600	620	650
5	Standover	733	752	770	799	825	855
6	HT Angle	70.5	70.5	70.5	70.5	70.5	70.5
7	HT Length	109	125	140	165	186	218
8	ST Angle	75	74.5	74	73.5	73	72.5
9	CS Length	435	435	435	435	435	435
10	BB Drop	75	75	75	72	72	72
11	BB Height	285	285	285	288	288	288
12	Wheelbase	1030	1040	1050	1064	1076	1092
13	Front Center	606	616	626	639	651	667
14	Fork Length	410	410	410	410	410	410
15	Fork Offset	50	50	50	50	50	50
