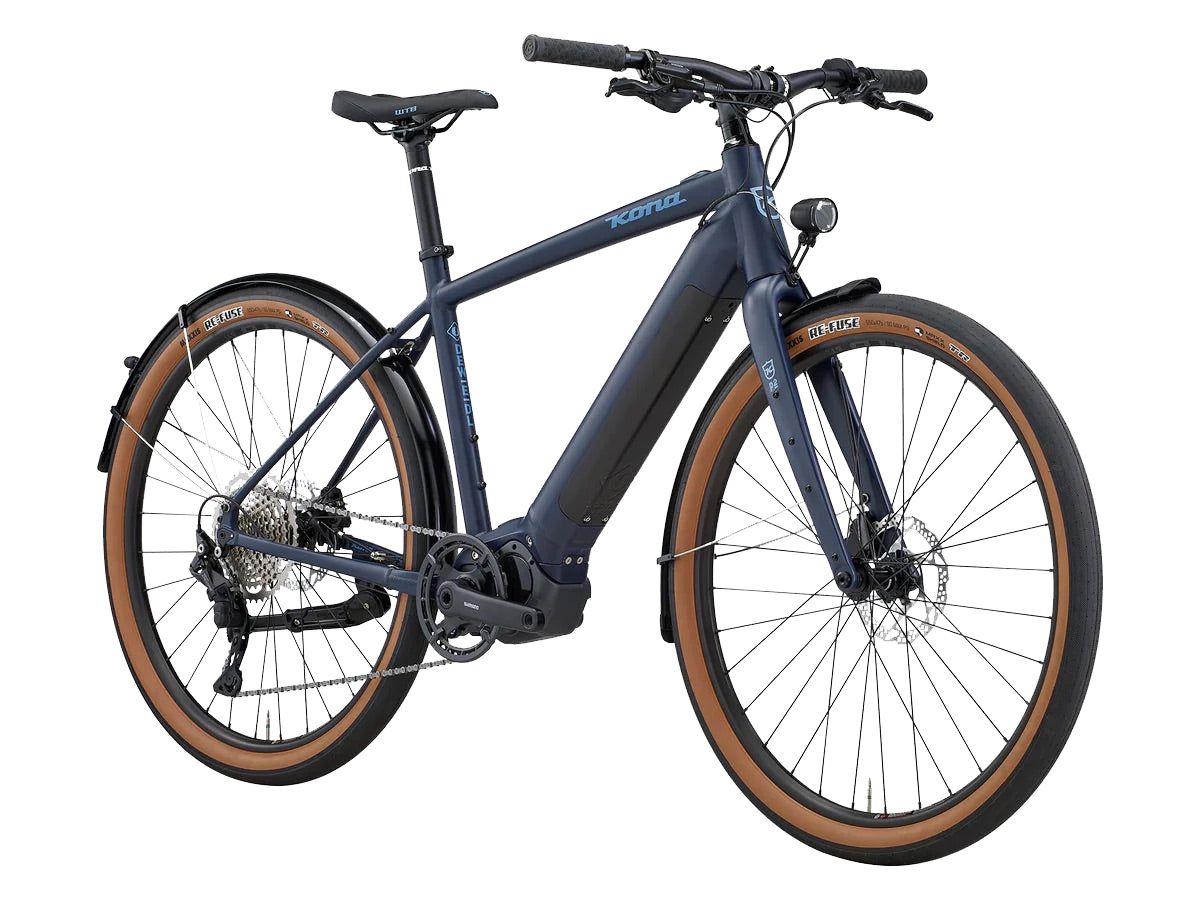

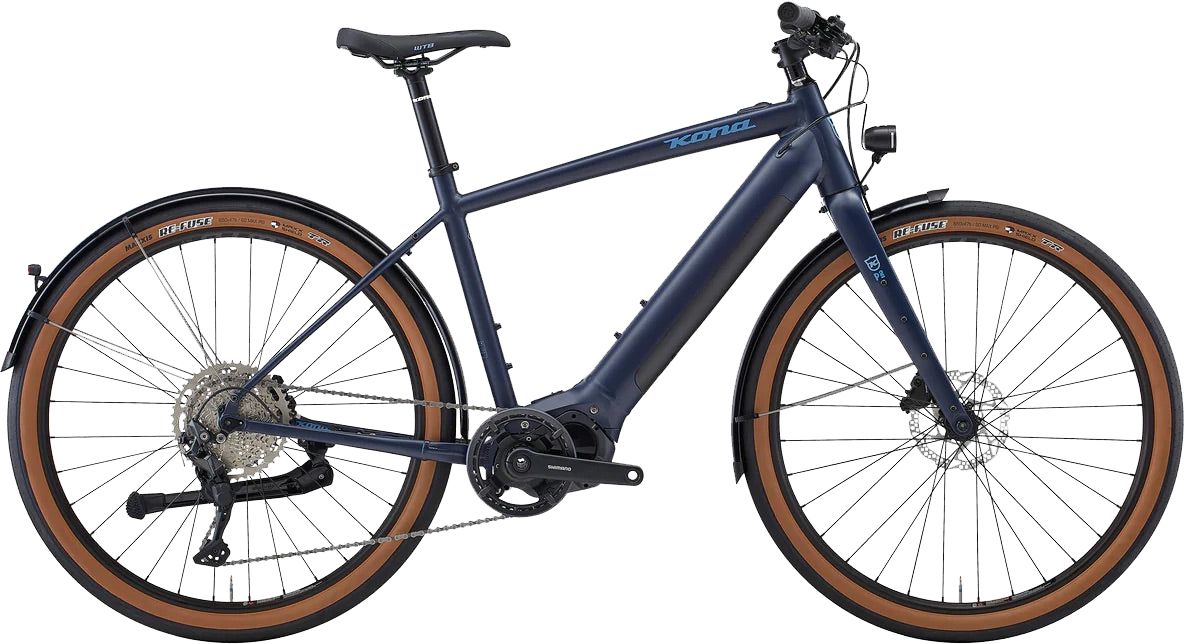

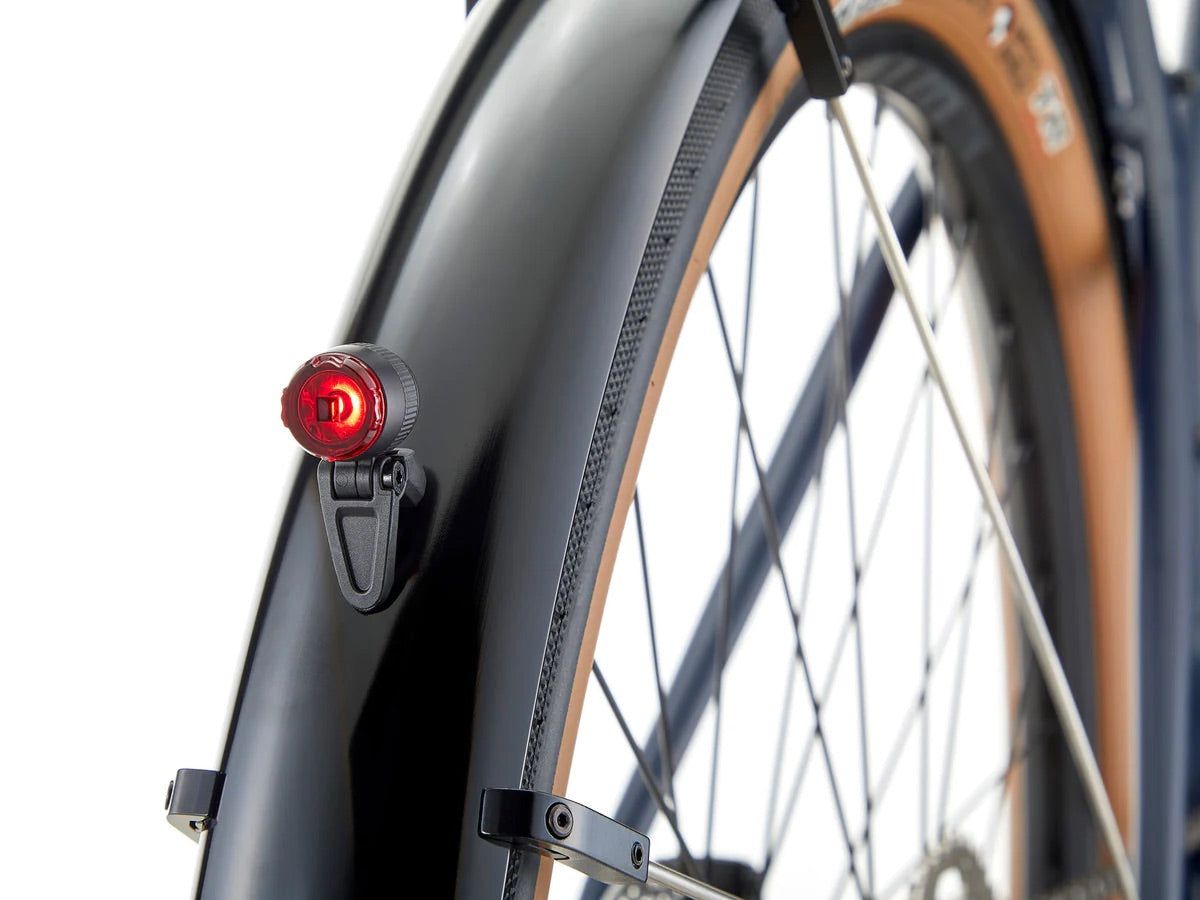

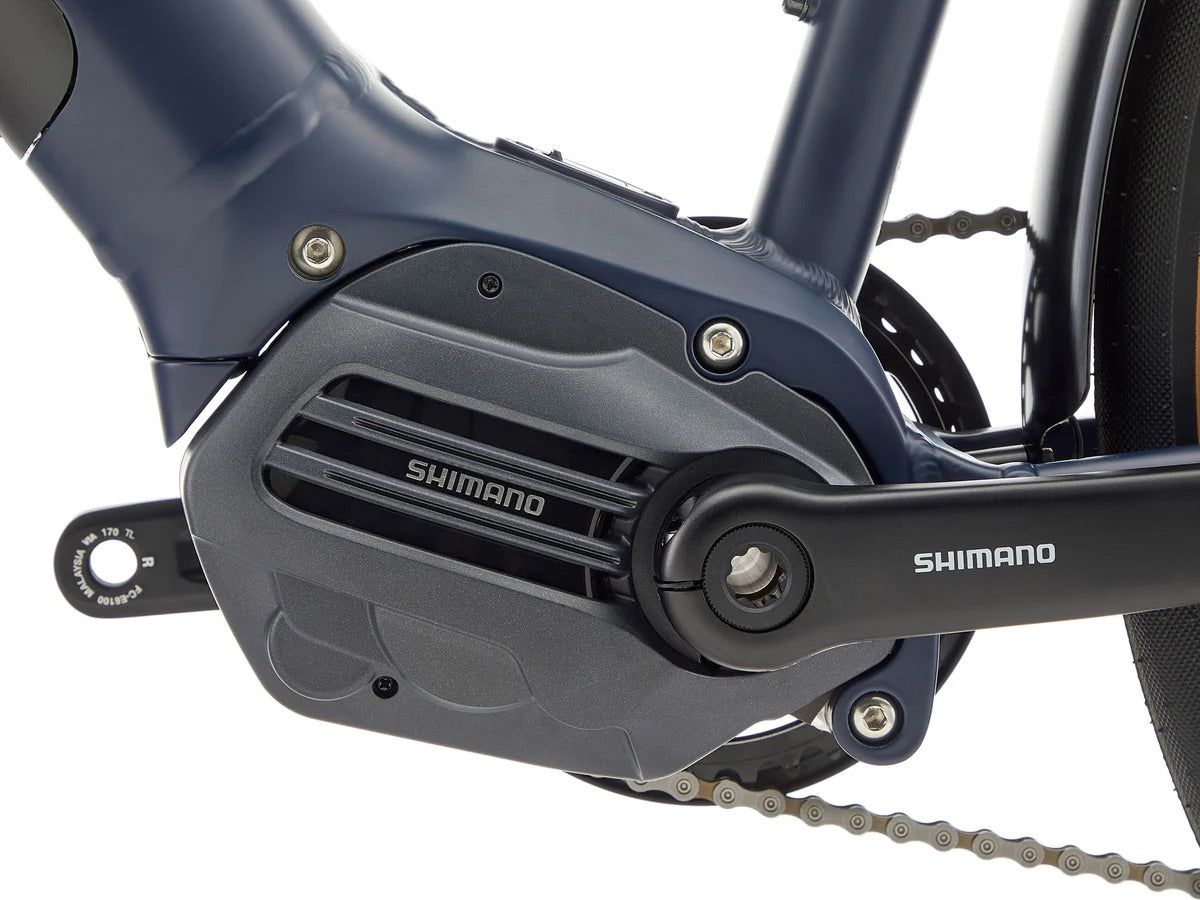

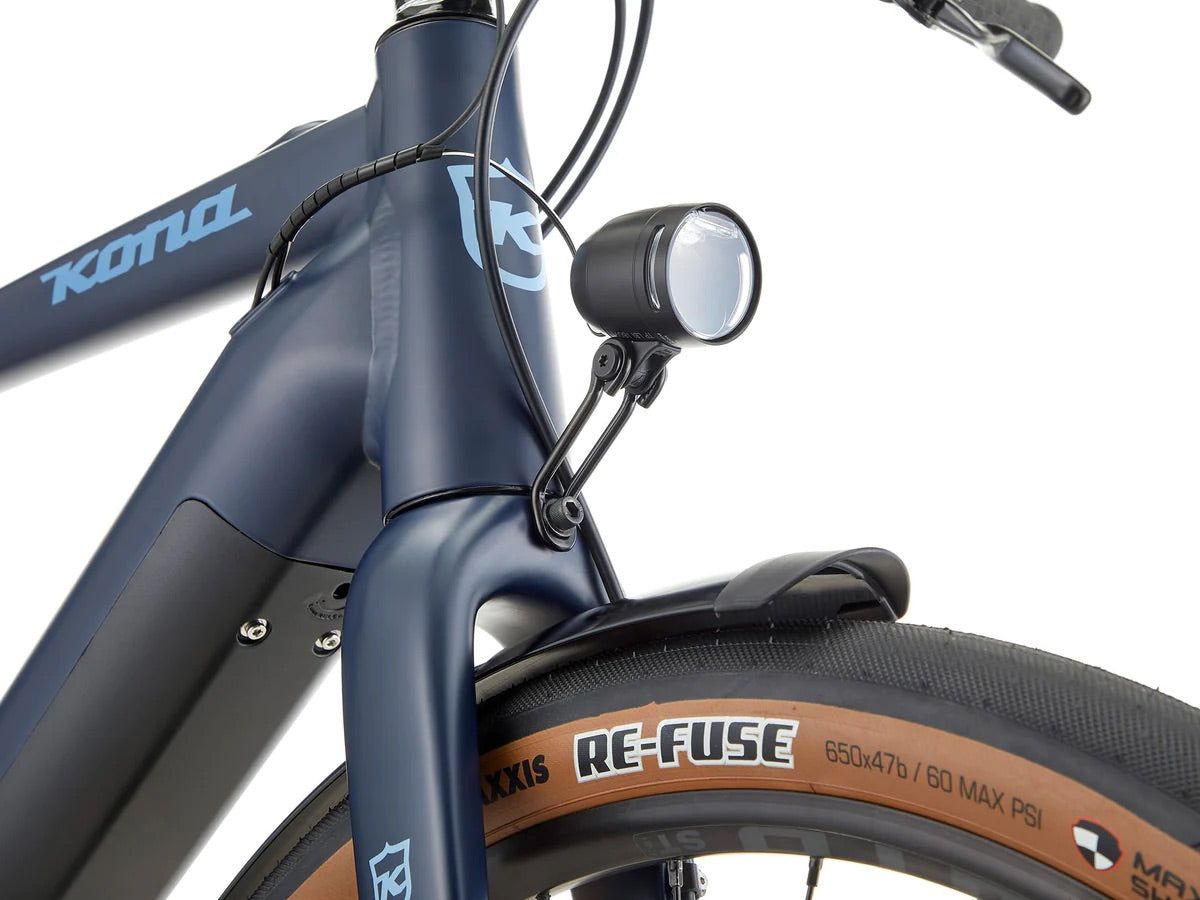

Commuters have been flocking to the Dew-E DL for its stylish design and because it’s a blast to ride. An aluminum frame features a Kona Rove Verso Full Carbon Flat Mount Disc fork. A 10-speed drivetrain works in perfect harmony with the low-profile Shimano motor and integrated battery. Sturdy aluminum fenders and lights keep you dry and visible throughout your ride. Powerful hydraulic disc brakes and 160mm rotors stop on a dime, even in wet conditions and puncture-resistant 650x47c tires keep the road rolling by smoothly whether you’re cruising on pavement, or a dirt path. This is the electric commuter you’ve been searching for!
SPECIFICATIONS
Frame Material
Kona 6061 Aluminum Butted
Sizes
S, M, L, XL
Rear Shock
n/a
Fork
Kona Rove Verso Full Carbon Flat Mount Disc
Crankarms
Shimano E6100
Chainrings
38t
B/B
n/a
Pedals
n/a
Chain
Shimano HG54
Cassette
Shimano Deore 11-46t 10spd
Chainguide
n/a
F/D
n/a
R/D
Shimano Deore
Shifters
Shimano Deore
Brake Calipers
Shimano Hydraulic
Front Brake Rotor
Shimano RT54 160mm (centerlock)
Rear Brake Rotor
Shimano RT54 160mm (centerlock)
Brake Levers
Shimano MT201 Hydraulic
Headset
FSA No.57BP
Handlebar
Kona Aluminum Riser
Stem
Kona Control
Seatpost
Kona Commuter 31.6mm
Seat Clamp
Kona Clamp
Grips
Kona Key Grip
Saddle
WTB Volt
Front Hub
Shimano Tiagra 100x12mm
Rear Hub
Shimano Tiagra 142x12mm
Spokes
Stainless 14g
Rims
WTB ST i23 TCS 2.0
Front Tire
WTB Horizon TCS w/ Puncture Protection 650x47c
Rear Tire
WTB Horizon TCS w/ Puncture Protection 650x47c
DriveUnit
Shimano E6100 20MPH
Battery
Shimano 504Wh
Display
Shimano SC-E7000 Display
Charger
Shimano STEPS 2A
BatteryLock
n/a
Paint Color
Matte Midnight w/ Blue-Grey Decals
Extras
Fenders, Busch & Müller Front & Rear Light, Kickstand
GEOMETRY
Size
S
M
L
XL
1
ST Length
420
470
520
580
2
TT Length
551
596
635
678
3
Reach
404
430
446
471
4
Stack
548
579
617
636
5
Standover
700
741
786
830
6
HT Angle
70.0
70.0
70.0
70.0
7
HT Length
135
168
208
228
8
ST Angle
75.0
74.0
73.0
72.0
9
CS Length
450
450
450
450
10
BB Drop
60
60
60
60
11
BB Height
282
282
282
282
12
Wheelbase
1081
1118
1148
1180
13
Front Center
638
675
705
736
14
Fork Length
400
400
400
400
15
Fork Offset
50
50
50
50
