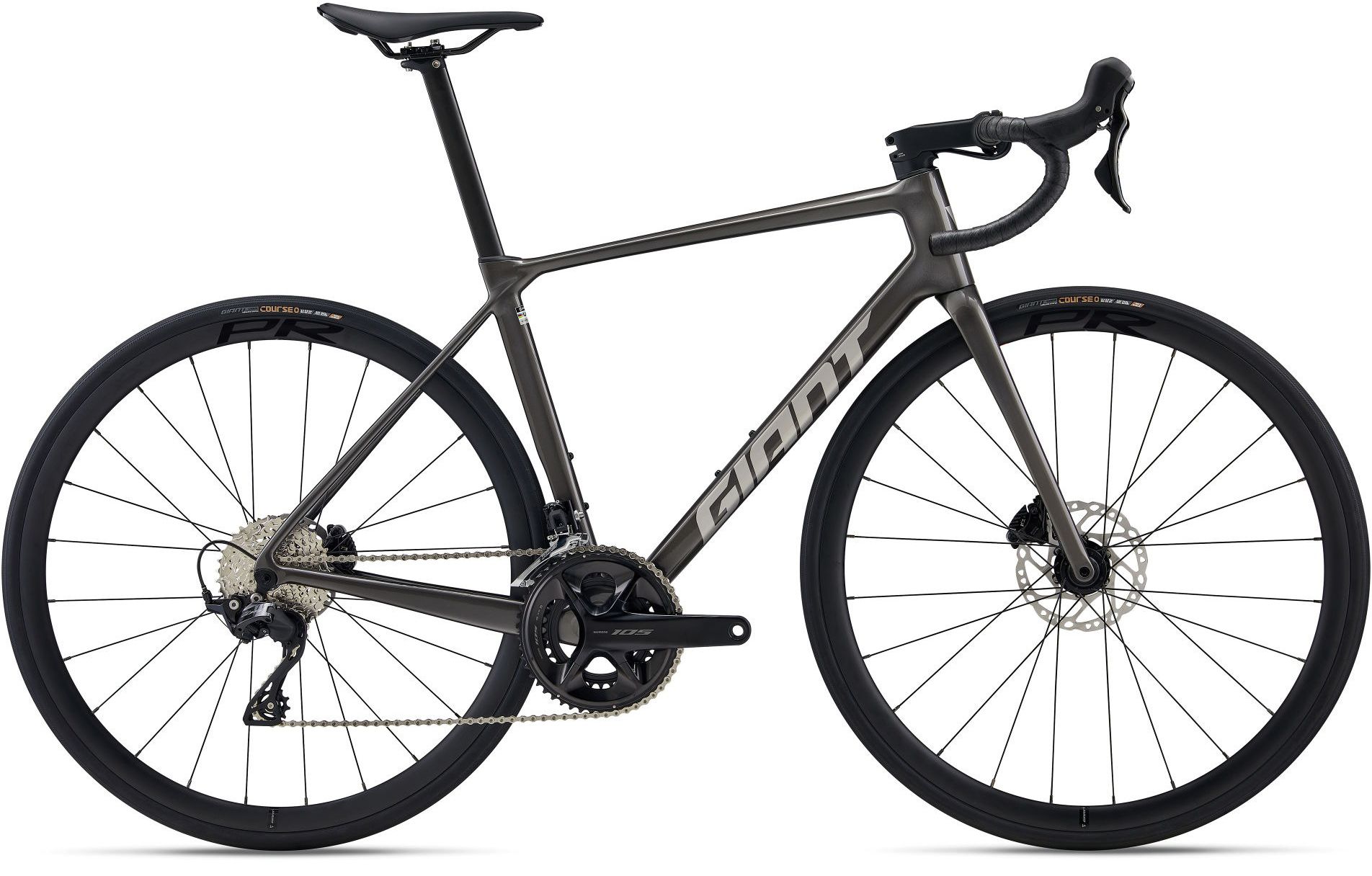

Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.
Key Performance Factors
Class-leading efficiency
Advanced aerodynamics
Total control
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
|
Colours |
Stealth Chrome
|
|
Frame |
Advanced-grade Composite, 12x142mm thru-axle, disc
|
|
Fork |
Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
|
|
Handlebar |
Giant Contact XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm |
|
Stem |
Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
|
Seatpost |
Giant Variant composite -5/+15mm offset |
|
Saddle |
Giant Approach |
|
Shifters |
Shimano 105 |
|
Front Derailleur |
Shimano 105 |
|
Rear Derailleur |
Shimano 105 |
|
Brakes |
Shimano 105 hydraulic, Shimano SM-RT64 rotors [F]160mm, [R]140mm |
|
Brake Levers |
Shimano 105 Di2 |
|
Cassette |
Shimano 105, 12-speed, 11x34 |
|
Chain |
KMC X12L-1 |
|
Crankset |
Shimano 105, 36/52 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm |
|
Bottom Bracket |
Shimano press fit |
|
Rims |
Giant P-R1 Disc wheelset, alloy, [F]30mm, [R]30mm |
|
Hubs |
Giant alloy 12mm thru-axle |
|
Spokes |
Stainless |
|
Tyres |
Giant Gavia Course 0, tubeless, 700x28c (28mm), folding
|
|
Extras |
Tubeless prepared, 33mm max tire size |
|
Weight |
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight but in reality weight can vary based on size finish hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Every effort has been made to ensure accuracy throughout this website. However Giant reserves the right to change bike specifications features prices and colours without prior notice.
