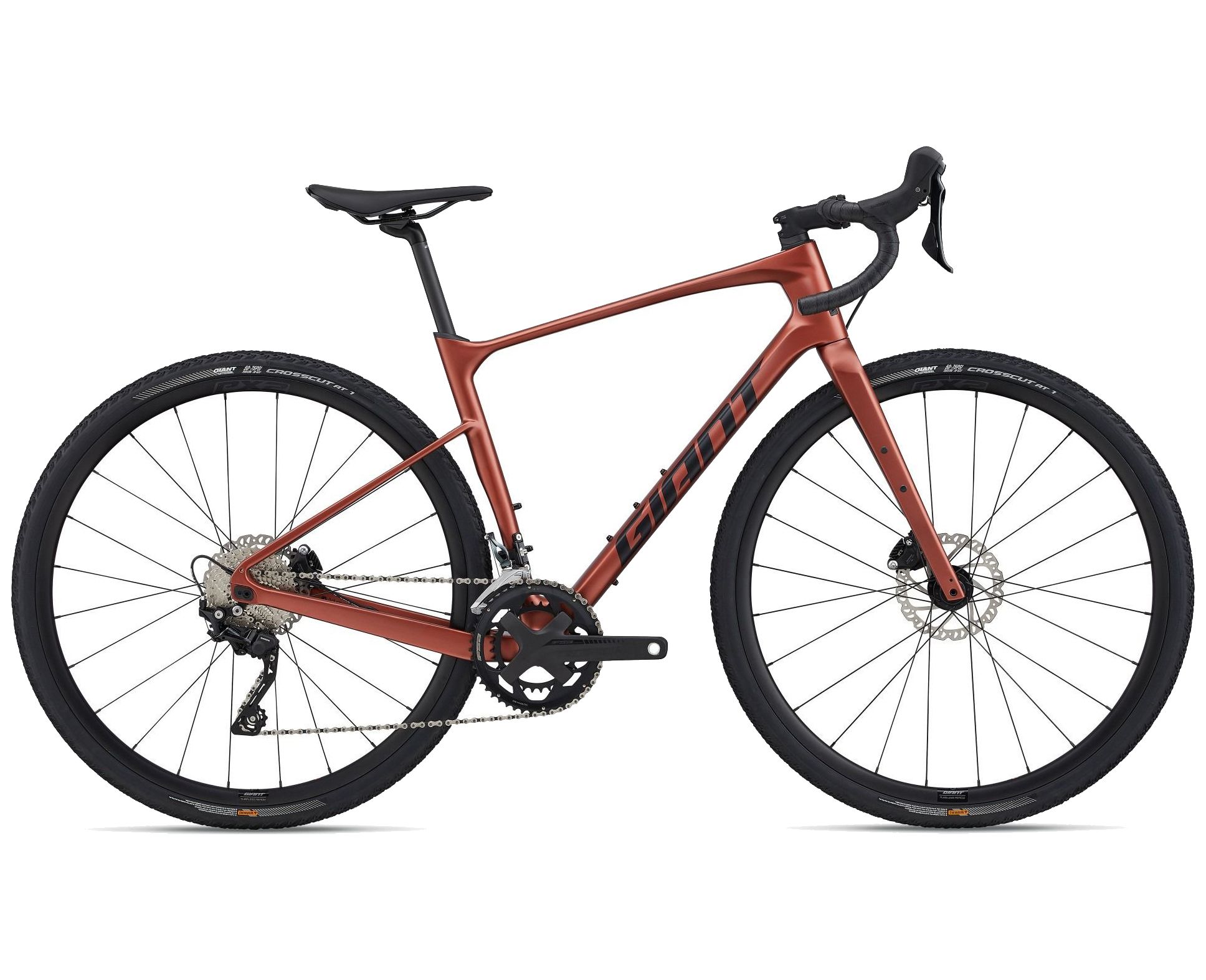

With a lightweight Advanced-grade composite frame that’s engineered for compliance, Revolt Advanced lets you push your limits on variable terrain. A composite fork eats up bumps, and the D-Fuse seatpost and handlebar absorb shocks and vibrations. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or a 30.9mm round or dropper post. Details including a smart mount system for racks and accessories give you a head start on any gravel riding mission.
FAST GRAVEL ROUGH GRAVEL PAVEMENT OR DIRT. HOWEVER YOU CHOOSE TO ROLL THIS BIKE DOES IT ALL. A NEW COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.
New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.
New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout |
Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
Handlebar | Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
Grips | Stratus Lite 3.0 |
Stem | Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
Seatpost | Giant D-Fuse, composite, 14mm offset |
Saddle | Giant Approach |
Shifters | Shimano GRX RX-400, 2x10 |
Front Derailleur | Shimano Tiagra |
Rear Derailleur | Shimano GRX-RX400 Max 36T |
Brakes | Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
Brake Levers | Shimano GRX RX-400 hydraulic |
Cassette | Shimano Tiagra, 11x34 |
Chain | KMC X10-1 |
Crankset | FSA Omega Adventure, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
Bottom Bracket | Shimano, press fit |
Rims | Giant P-X2 Disc wheelset, 25mm inner rim width |
Hubs | Giant P-X2 Disc wheelset |
Spokes | Giant P-X2 Disc wheelset |
Tyres | Giant CrossCut AT 1, 700x38c, tubeless |
Extras | Factory tubeless set up, 53mm max tyre size in long flip chip position, 42mm max tyre size in short flip chip position |
